Piston and Cylinder Dimensions

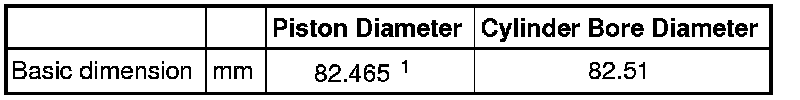

Piston and Cylinder Dimensions


Do not bore, hone, grind or rework the cylinder bores with shop tools. Reworking damages the surface of the cylinder bore.






• 1 Dimension is without the graphite coating (0.02 mm thick). The graphite coating wears off.
