Crankshaft, Cylinder Block - Fastener Tightening Specifications

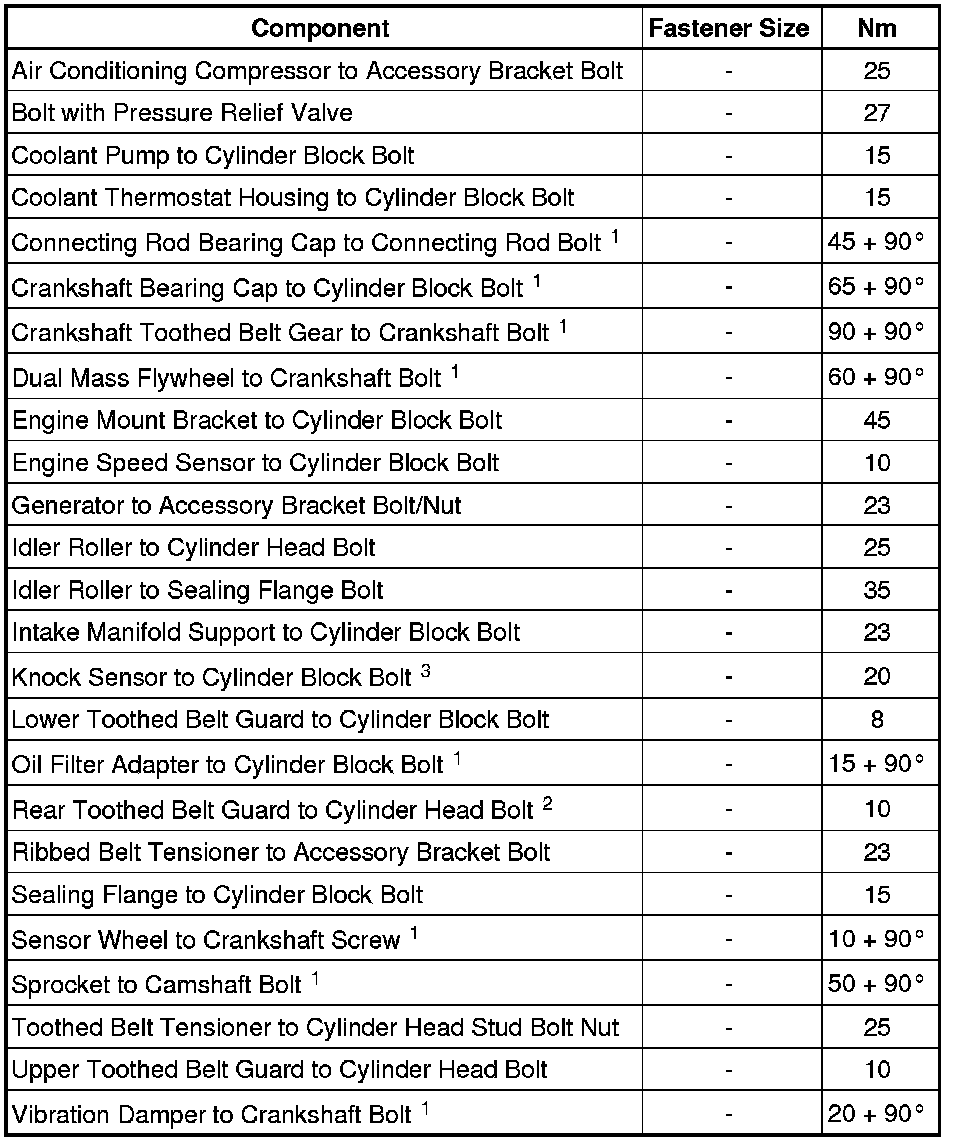

Fastener Tightening Specifications






• 1 Always replace

• 2 Install using locking fluid

• 3 The tightening specification affects the function of the knock sensor

Accessory Bracket Bolt Tightening Sequence and Specification






- Tighten the bolts in the sequence shown to 40 Nm.
