Driver Side Rear Side Airbag Crash Sensor G256, Golf From MY 09

Driver Side Rear Side Airbag Crash Sensor G256, Golf from MY 09

Removing


Always read the General Safety Precautions before working on airbags, belt tensioners and battery cut-out units (pyrotechnical components). Refer to => [ Airbag, Belt Tensioner and Battery Cut-Out Units, General Safety Precautions ] Airbag, Belt Tensioner and Battery Cut-Out Units, General Safety Precautions.

- Disconnect the battery.

- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat.

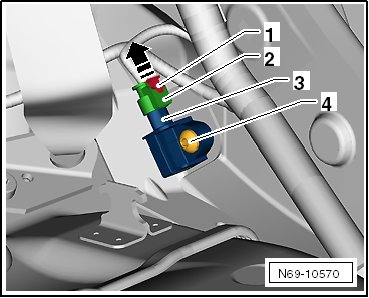

- Disconnect the connector lock - 1 - in the - direction of the arrow - and disconnect the connector- 2 - from driver side rear side airbag crash sensor (G256) - 3 -.






- Remove bolt - 4 -(9 Nm) and then remove driver side rear side airbag crash sensor (G256) from the mount.

Installation

- Install in reverse order of removal.

- Switch on ignition.


Make sure no one is in the vehicle.

- Connect the battery.
