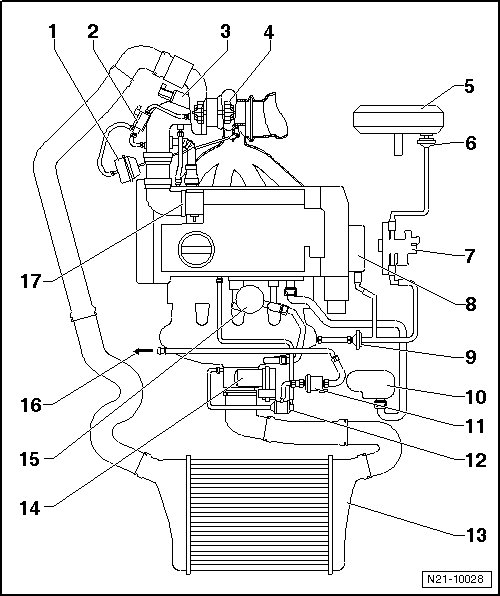

Turbocharger Schematic Overview

Turbocharger Schematic Overview






1 Vacuum Diaphragm

2 Wastegate Bypass Regulator Valve (N75)

3 Turbocharger Recirculation Valve (N249)

4 Turbocharger

5 Brake Booster

6 Non-Return Valve

7 Coolant Connection

8 Vacuum Pump

9 Non-Return Valve

10 Oil Filter Adapter

11 EVAP Canister Purge Regulator Valve 1 (N80)

12 Double Check-Valve

• Checking, refer to => [ Double Check-Valve, Checking ] Testing and Inspection.

13 Charge Air Cooler

14 Throttle Valve Control Module (J338)

15 Pressure Regulator Valve

16 to the Evaporative Emission (EVAP) Canister

17 Mass Airflow Sensor (G70)
