Air Injection Control Valve: Diagrams

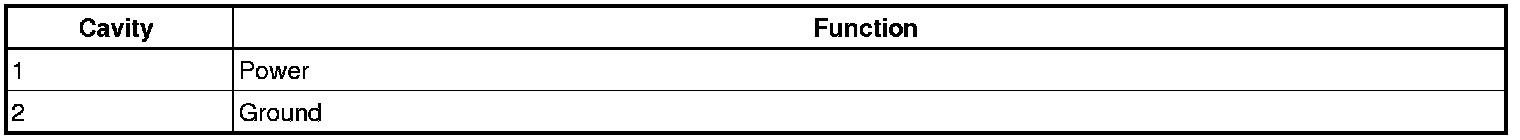

Engine Management System - Connector Views

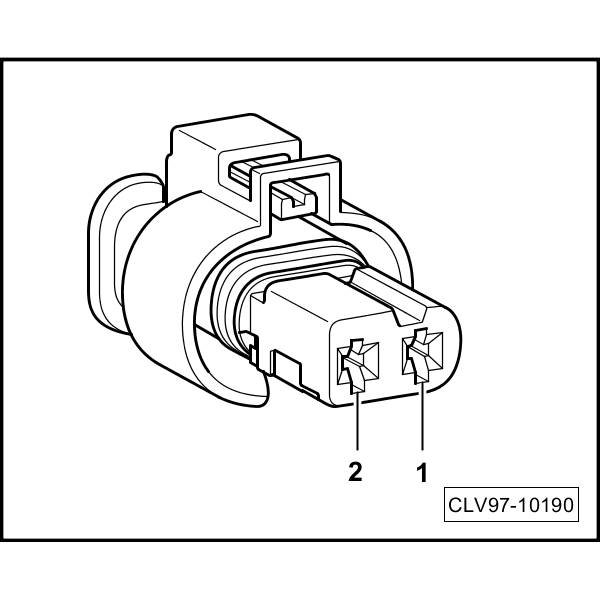

Secondary air injection solenoid valve -N112-



2.0L- CBFA and 2.5Lengines
