Engine Oil: Description and Operation

Engine Oil

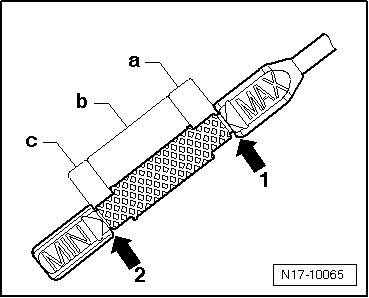

Marks on the Oil Dipstick





1 MAX. mark
2 MIN. mark
a Oil level is near the MAX mark: do not add oil!
b Oil level in the center area: Engine old can be added.
c Oil level is near the MIN. mark: fill with approximately 0.5 liter of oil.
