Turn Signal Switch (E2)

Turn Signal Switch (E2)


Follow the specified sequence when removing and installing steering column switch components. Refer to => [ Steering Column Switch Components, Removal and Installation Sequence ] Steering Column Switch Components, Removal and Installation Sequence.

• The "Turn signal switch" consists of the components Turn Signal switch (E2) , Headlamp Dimmer/Flasher Switch (E4) and depending on equipment (CCS) Cruise Control Switch (E45).

• For reasons of clarity, steering column switches with Cruise Control Switch are depicted as removed in the illustration.

Removal

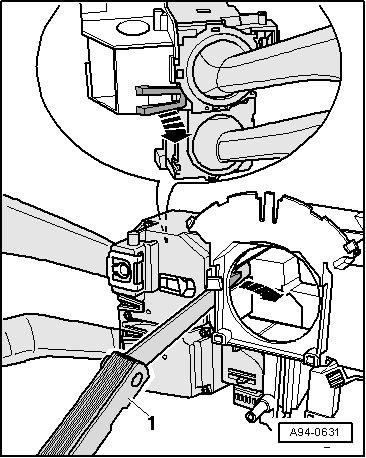

- Release retaining clips - arrows - using a 1.0 mm feeler gauge - 1 - and remove "turn signal switch" toward rear (toward rear of vehicle).






Installation

Install in reverse order of removal, noting the following:

• Turn signal switch must engage audibly.
