Rear Interior and Reading Light Bulbs







Rear Interior and Reading Light Bulbs

Removal

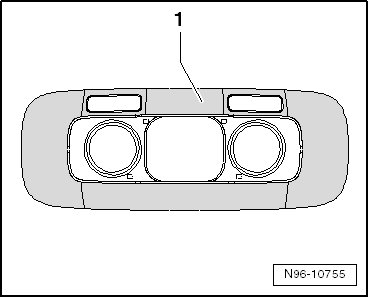

- Remove the trim - 1 - and the lens from the interior and reading lamp.






- Carefully remove bulb from socket - arrows -.






- Glass base bulb: 12V, 5W

Installation

Installation is performed in the reverse order of removal.
