Rear Interior and Reading Lamps

Rear Interior and Reading Lamps

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the trim - 1 - and the lens from the interior and reading lamp.

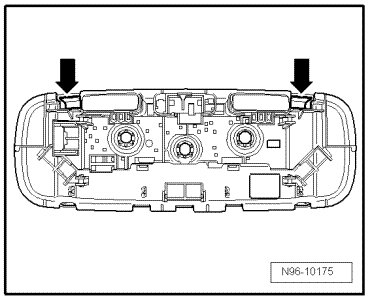

- Disengage retaining tabs - arrows - and remove interior and reading lights from molded headliner.






- Release and disconnect the harness connector - arrow - and remove the interior and map/reading lamps.






Installation

Installation is performed in the reverse order of removal.
