Crankshaft, Cylinder Block

Special Tools

Special tools, testers and auxiliary items required

• Micrometer 75-100 mm (VAS 6071)

• Cylinder Gauge (VAS 6078)

• Locking Pin (T10060 A)






• Flywheel Retainer (3067)

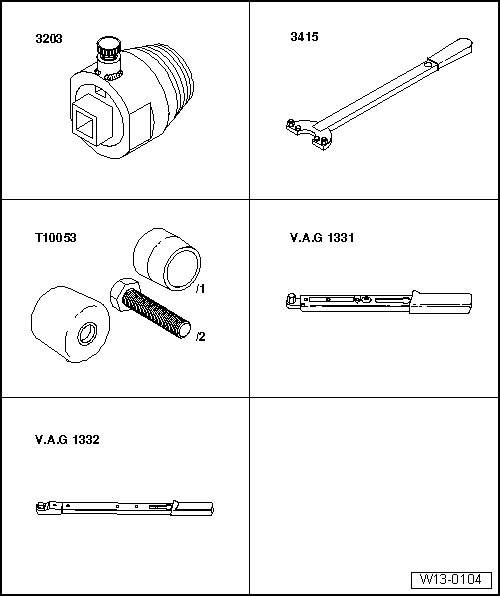

Special tools, testers and auxiliary items required

• Seal Remover (3203)

• Counter Support (3415)

• Assembly Tool (T10053)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (40-200 Nm) (V.A.G 1332)
