Engine Mount: Service and Repair

Engine, Securing to the Engine and Transmission Holder (VAS 6095)

Special tools, testers and auxiliary items required

• Engine Sling (2024 A)

• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)

• Engine and Transmission Holder (VAS 6095)

Secure the engine to the engine and transmission holder (VAS 6095) when working on it.

Procedure

- Remove the transmission.

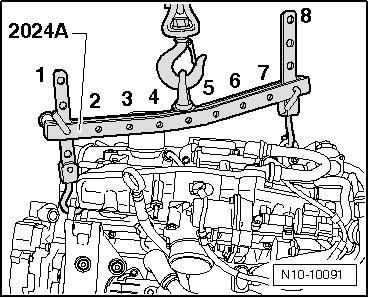

- Install the engine sling (2024 A) as shown and lift the engine from the engine-/gearbox jack (V.A.G 1383 A) using the shop crane - load cap = 700-1200 KG (VAS 6100).






Belt pulley side: Second hole for the rail in position 1

Flywheel side: First hole for the rail in position 7


Use securing pins at the hooks in order to prevent damage to the engine.

• The peg positions on the engine sling marked 1 to 4 face the belt pulley.

• The bores in the rail are counted from the hook.

- Secure the engine to the engine and transmission holder (VAS 6095).
