Cylinder Head Assembly: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Spark Plug Removal Tool (3122 B)

• Compression Tester (V.A.G 1763)

• Adapter (V.A.G 1381/5A)

• Drip Tray for VAS 6100 (VAS 6208)

• Engine Support Bracket (T10339)

• Adapter (10-222 A/18)

• Engine Support Bridge (10-222 A)

• Valve Seal Removal Tool (3364)

• Valve Stem Seal Driver (3365)

• Adapter (T40012)

• Valve Cotters Asm/Disasm Device (VAS 5161)

• Guide Plate for FSI Engine (VAS 5161/19B)

• Seal Puller - General Useage (2085)

• Adapter (2085/2)

• Assembly Tool (T10071)

• Claws (T40001/6) and (T40001/7)

• Ratchet Insert 1/4" (VAS 6234)

• TORX(R) Bit Set (V.A.G 1766)

• Torque Wrench (V.A.G 1783)

• Dial Gauge Holder (VW 387)






• Dial Gauge 0-10 mm (VAS 6079)






• Spring Type Clip Pliers (VAS 5024 A)






• Engine Support Feet (10-222 A/8)






• Thrust Piece (T10353)

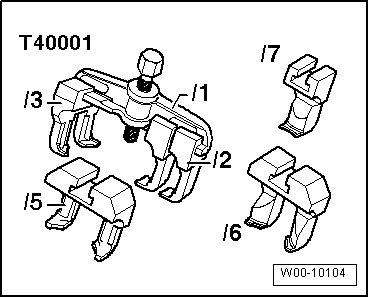

• Puller (T40001)

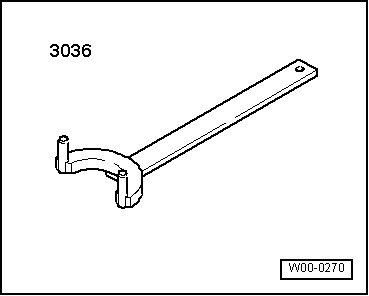

• Retainer (3036)











Special tools, testers and auxiliary items required

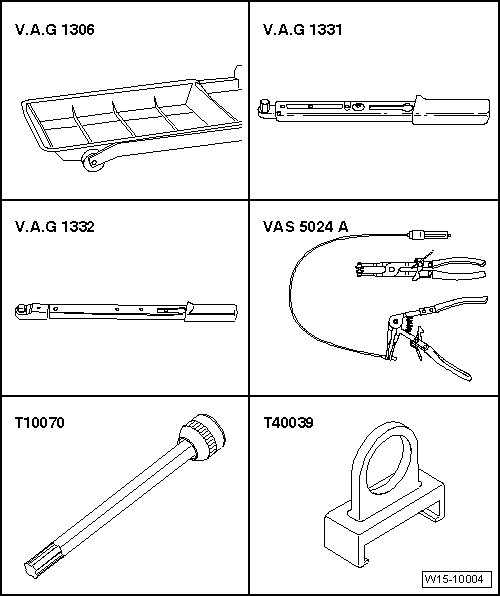

• Drip Tray (V.A.G 1306)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (V.A.G 1332)

• Spring Type Clip Pliers (VAS 5024 A)

• Polydrive Bit and Drive Socket (T10070)

• Ignition Coil Puller (T40039)






Special tools, testers and auxiliary items required

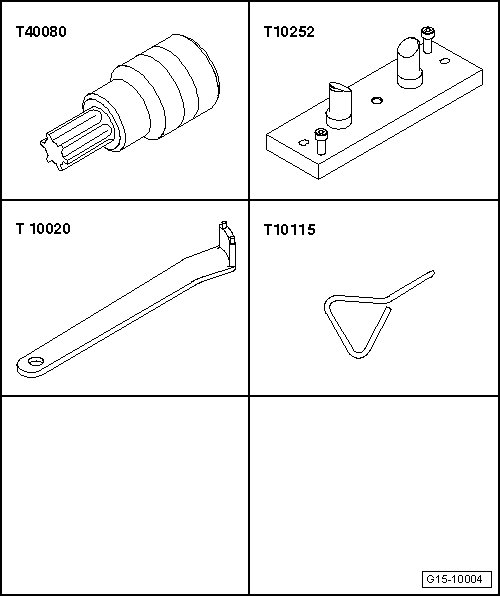

• Socket (T40080)

• Camshaft Clamp (T10252)

• Toothed Belt Tensioner (T10020)

• Locking Pin (T10115)

• Torque Wrench (40-200 Nm) (V.A.G 1332)
