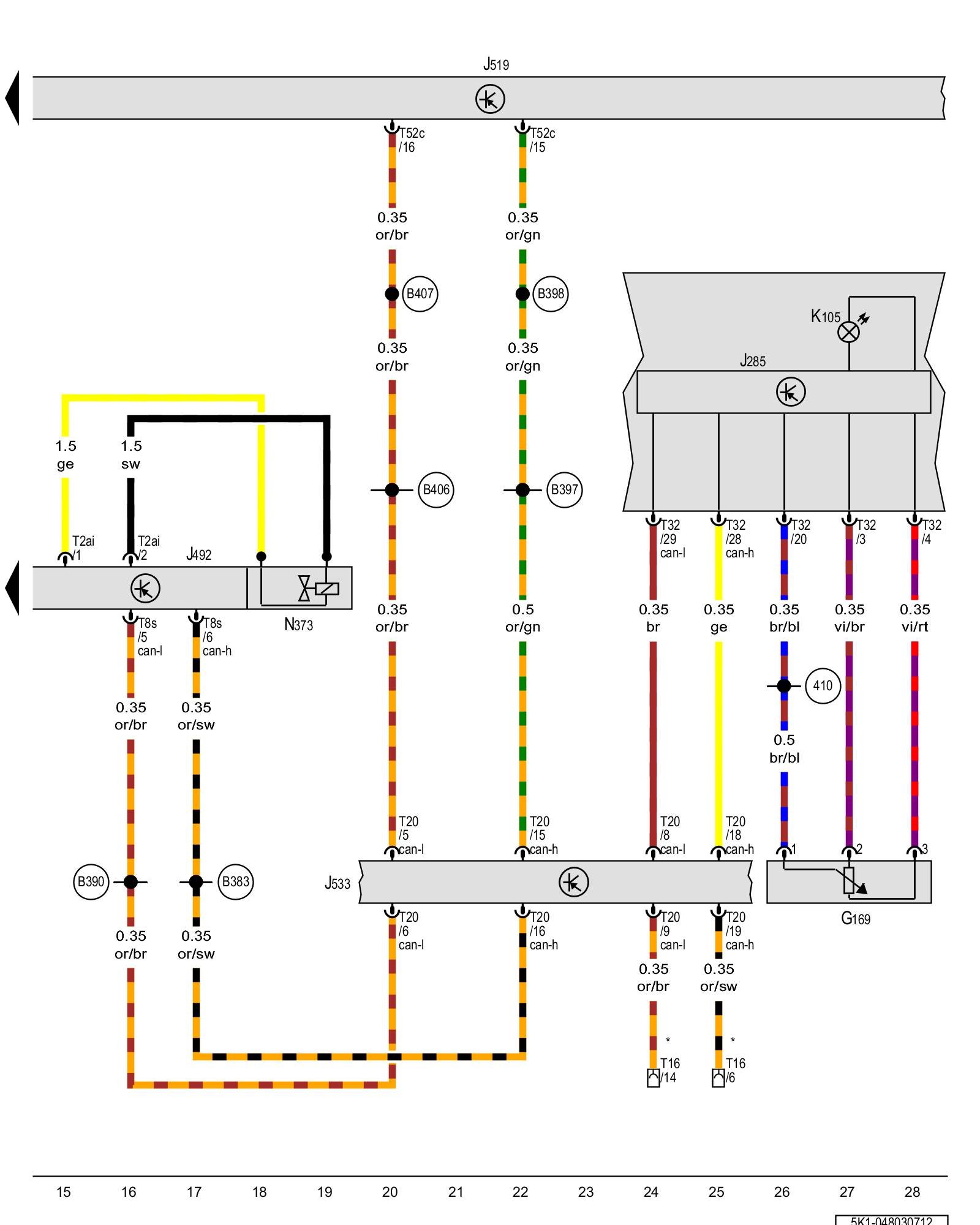

Diagram 48/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuel level sensor 2, Instrument cluster control module, All wheel drive control module, Data bus on board diagnostic interface, Haldex clutch control valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G169 - Fuel level sensor 2 Fuel Pumps and Sensors

J285 - Instrument cluster control module Control modules in front part of vehicle - Overview of Control Modules

J492 - All wheel drive control module, on the rear final drive Locations

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J533 - Data bus on board diagnostic interface, in the left footwell, near the center console Control modules in front part of vehicle - Overview of Control Modules

K105 - Low fuel level indicator lamp

N373 - Haldex clutch control valve Locations

T2ai - Double connector

T8s - 8-pin connector

T16 - 16-pin connector, under the instrument panel, left

T20 - 20-pin connector

T32 - 32-pin connector

T52c - 52-pin connector

(410) - Sensor ground connection 1 (in main wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B398) - Comfort system CAN bus high connection 2 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

(B407) - Comfort system CAN bus low connection 2 (in main wiring harness)

* - Diagnostic connector

Previous Diagram 48/2 (Tracks 1-14)
