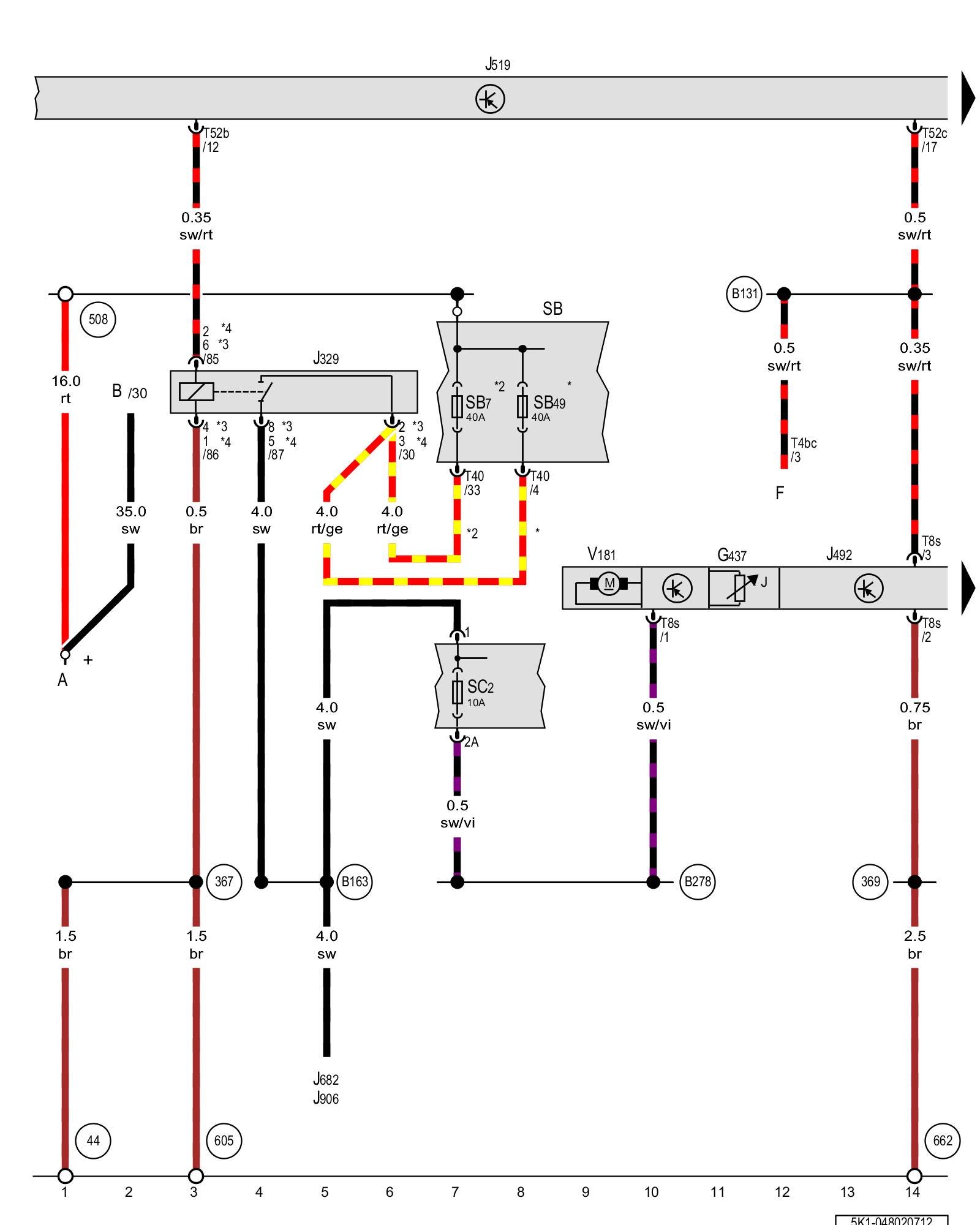

Diagram 48/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Oil pressure/temperature sensor, Terminal 15 power supply relay, All wheel drive control module, Fuse panel B, Haldex clutch pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

F - Brake lamp switch ABS Mark 70 (ABS/ASR) [1][2]Brake Light Switch

G437 - Oil pressure/temperature sensor Locations

J329 - Terminal 15 power supply relay Overview Of Relay Carrier

J492 - All wheel drive control module, on the rear final drive Locations

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J682 - Terminal 50 power supply relay Overview Of Relay Carrier

J906 - Starter relay 1 Overview Of Relay Carrier

SB - Fuse panel B Fuse overview (SA), (SB), (SC)

SC2 - Fuse 2 (on fuse panel C) Fuse overview (SA), (SB), (SC)

SB7 - Fuse 7 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB49 - Fuse 49 (on fuse panel B) Fuse overview (SA), (SB), (SC)

T4bc - 4-pin connector

T8s - 8-pin connector

T40 - 40-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

V181 - Haldex clutch pump Locations

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior

(367) - Ground connection 2 (in main wiring harness)

(369) - Ground connection 4 (in main wiring harness)

(508) - Terminal 30 threaded connection (on E-box)

(605) - Ground connection on upper steering column Overview Of Ground Connections in Interior

(662) - Ground connection in left rear side panel Overview Of Ground Connections in Luggage Compartment

(B131) - Connection 54 (in interior wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

(B278) - Positive connection 2 (15a) (in main wiring harness)

* - E-Box high

*2 - E-Box low

*3 - Through October 2009

*4 - from November 2009

Next Diagram 48/3 (Tracks 15-28)
