Diagram 119/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

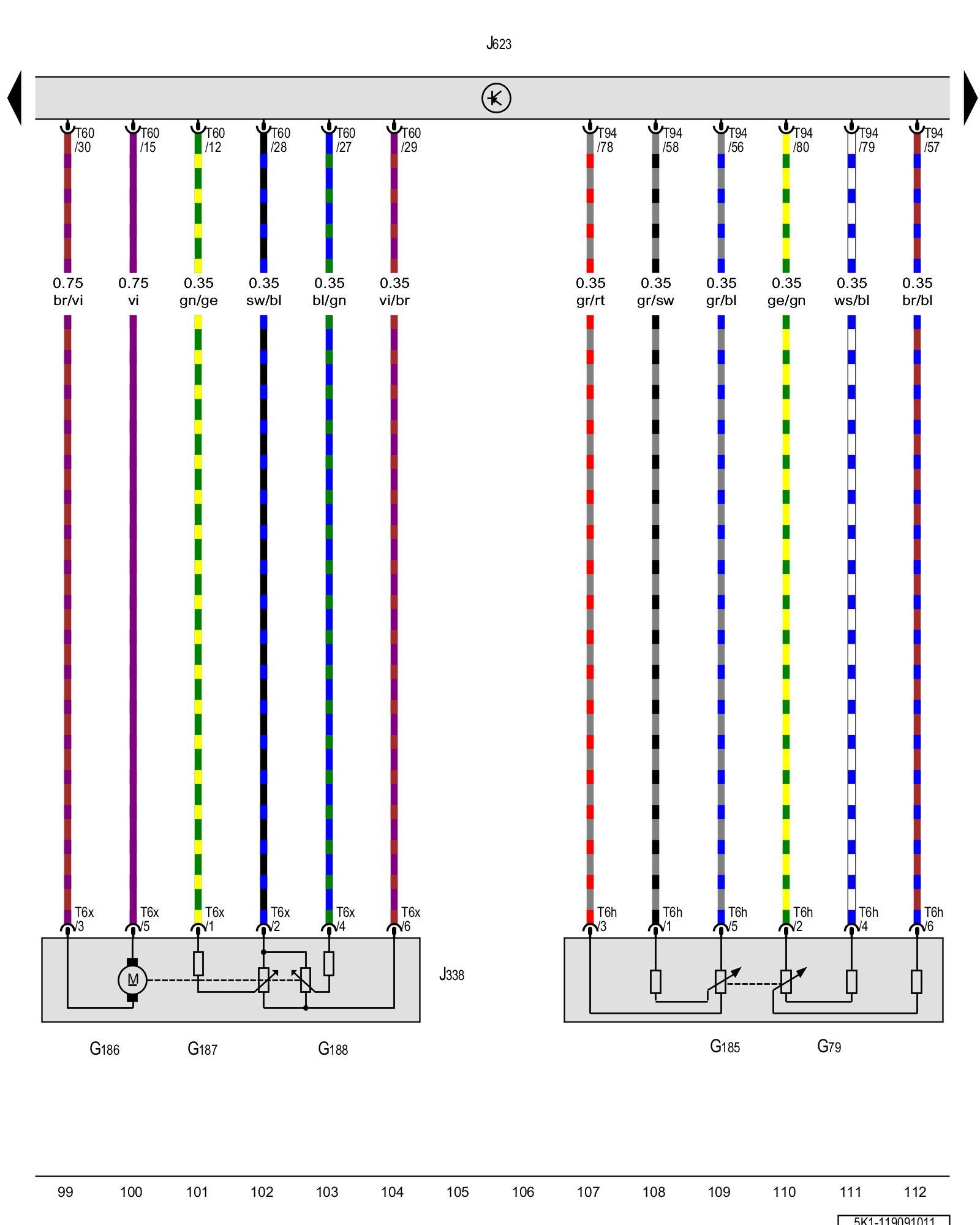

Accelerator pedal position sensor, Accelerator pedal position sensor 2, Throttle valve control module, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G79 - Accelerator pedal position sensor Accelerator Pedal Module Overview [1][2]Accelerator Pedal Position Sensor

G185 - Accelerator pedal position sensor 2 Accelerator Pedal Module Overview [1][2]Accelerator Pedal Position Sensor

G186 - EPC throttle drive
Locations

G187 - EPC throttle drive angle sensor
Locations

G188 - EPC throttle drive angle sensor 2
Locations

J338 - Throttle valve control module
Locations
[1][2]Diagrams

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

T6h - 6-pin connector

T6x - 6-pin connector

T60 - 60-pin connector

T94 - 94-pin connector

Previous Diagram 119/8 (Tracks 85-98)

Next Diagram 119/10 (Tracks 113-126)
