Diagram 119/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

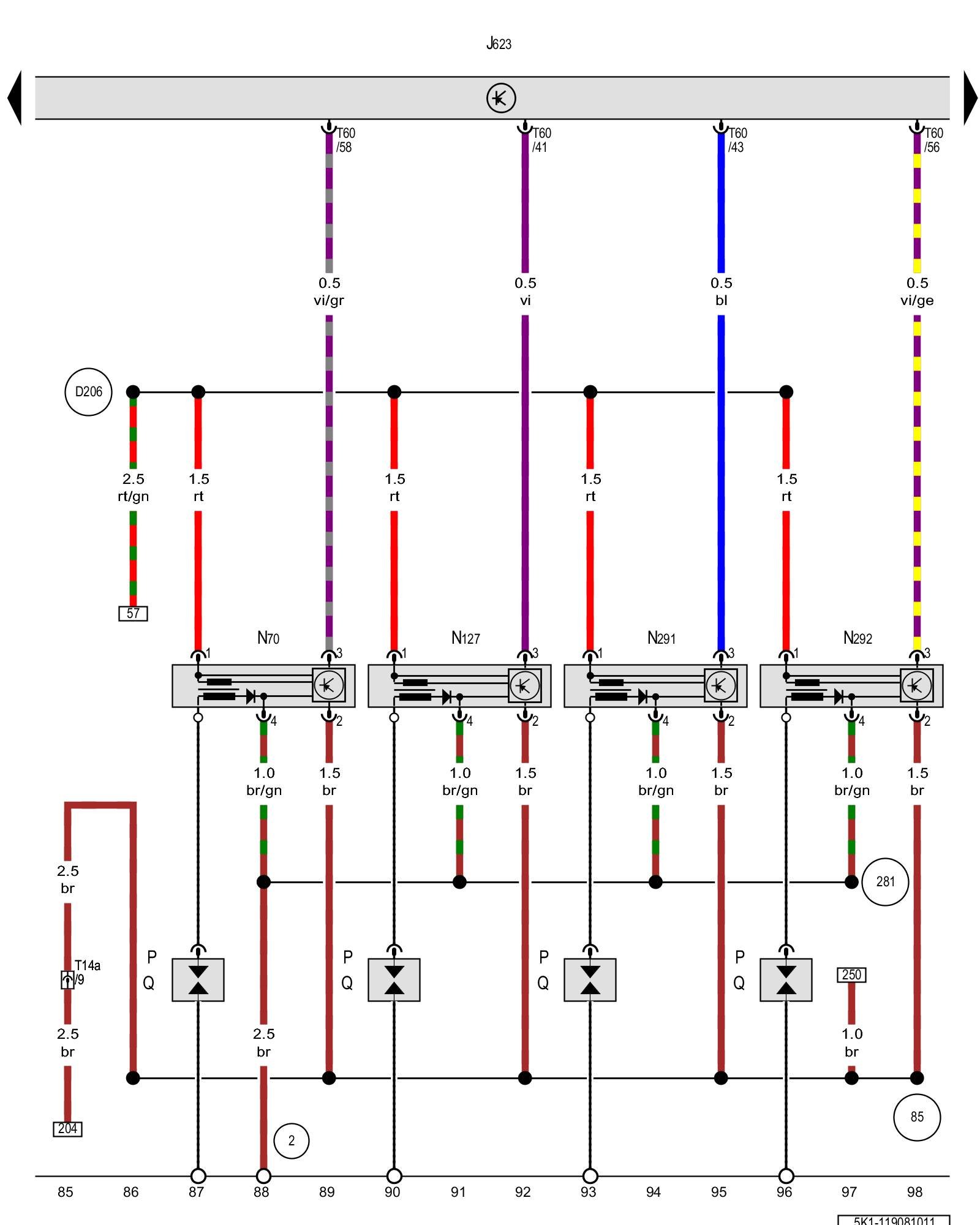

Engine control module, Ignition coil 1 with power output stage, Ignition coil 2 with power output stage, Ignition coil 3 with power output stage, Ignition coil 4 with power output stage, Spark plug connectors, Spark plugs





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

N70 - Ignition coil 1 with power output stage
Locations
[1][2]Diagrams

N127 - Ignition coil 2 with power output stage
Locations
[1][2]Diagrams

N291 - Ignition coil 3 with power output stage
Locations
[1][2]Diagrams

N292 - Ignition coil 4 with power output stage
Locations
[1][2]Diagrams

P - Spark plug connectors

Q - Spark plugs

T14a - 14-pin connector Overview of connector stations and connectors

T60 - 60-pin connector

(2) - Ground strap, transmission to body

(85) - Ground connection 1 (in engine compartment wiring harness)

(281) - Ground connection 1 (in engine wiring harness)

(D206) - Connection 4 (87a) (in engine wiring harness)
