Diagram 119/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

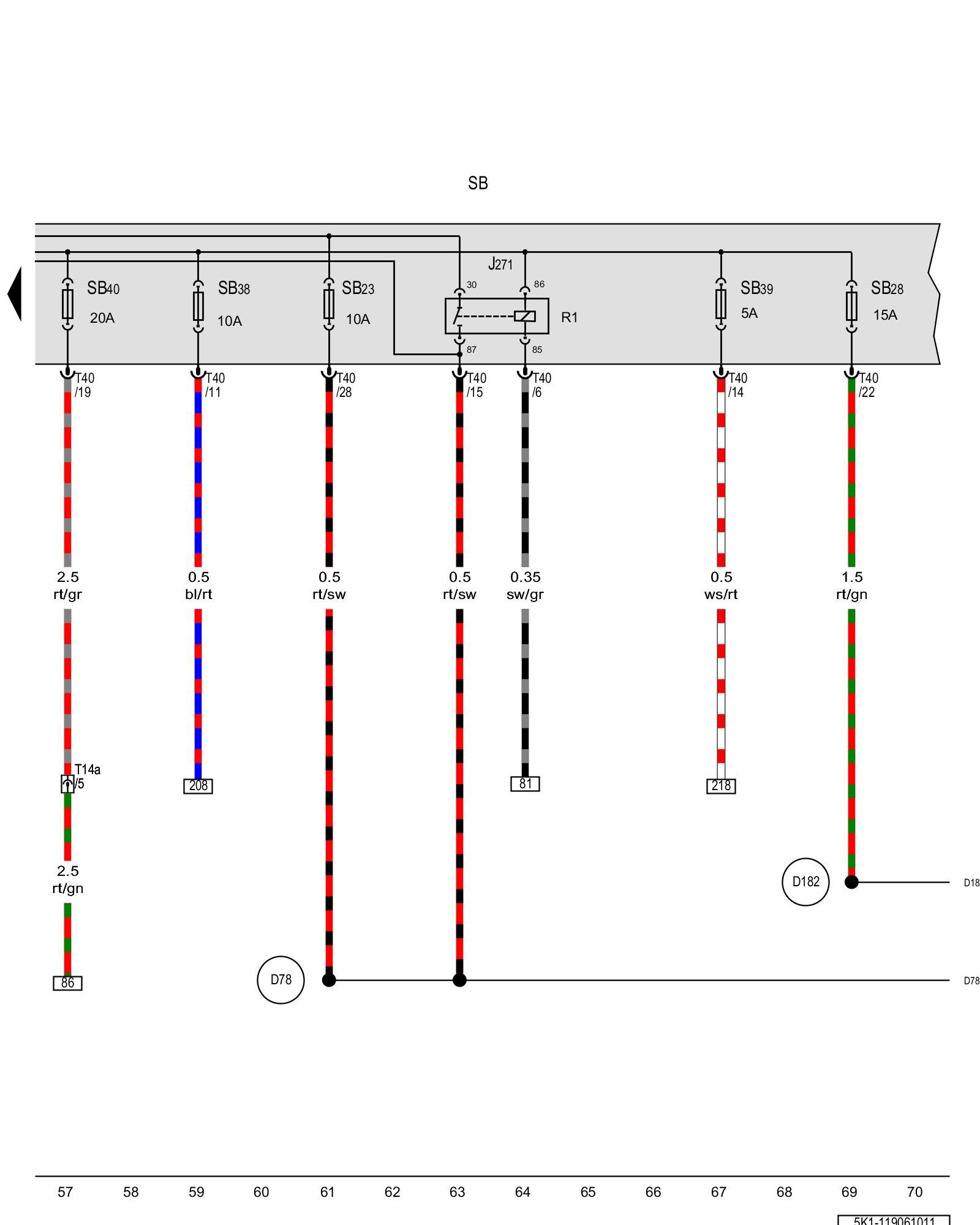

Motronic engine control module power supply relay, Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J271 - Motronic engine control module power supply relay Overview Of Relay Carrier

SB - Fuse panel B Fuse overview (SA), (SB), (SC)

SB23 - Fuse 23 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB28 - Fuse 28 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB38 - Fuse 38 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB39 - Fuse 39 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB40 - Fuse 40 (on fuse panel B) Fuse overview (SA), (SB), (SC)

T14a - 14-pin connector, near the left headlamp Overview of connector stations and connectors

T40 - 40-pin connector

(D78) - Positive connection 1 (30a) (in engine compartment wiring harness)

(D182) - Connection 3 (87a) (in engine compartment wiring harness)
