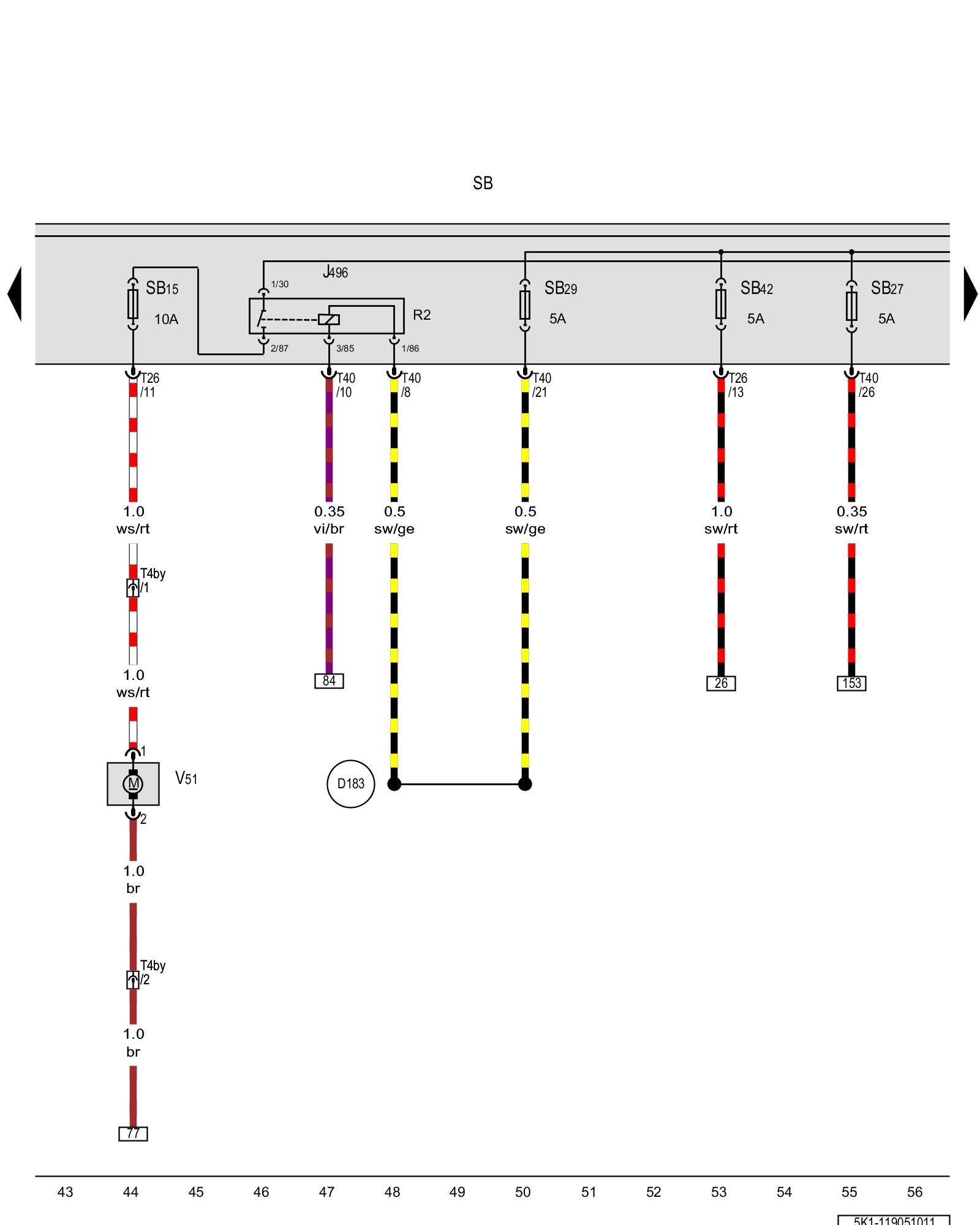

Diagram 119/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Auxiliary engine coolant pump relay, Fuse panel B, After-run coolant pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J496 - Auxiliary engine coolant pump relay

SB - Fuse panel B Fuse overview (SA), (SB), (SC)

SB15 - Fuse 15 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB27 - Fuse 27 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB29 - Fuse 29 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB42 - Fuse 42 (on fuse panel B) Fuse overview (SA), (SB), (SC)

T4by - 4-pin connector, near the starter

T26 - 26-pin connector

T40 - 40-pin connector

V51 - After-run coolant pump Cooling System Components Overview

(D183) - Connection 4 (87a) (in engine compartment wiring harness)
