Diagram 119/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

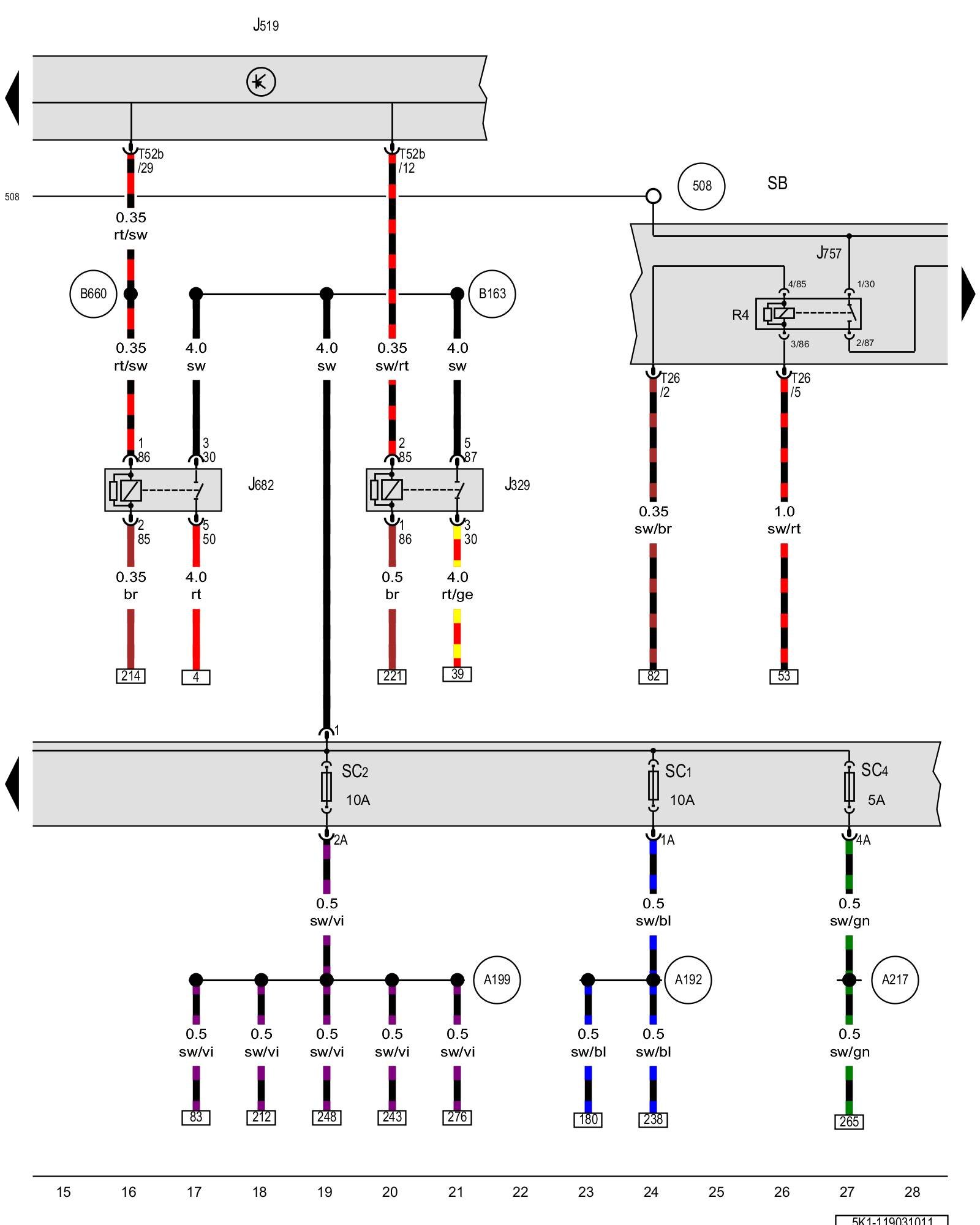

Terminal 15 power supply relay, Vehicle electrical system control module, Terminal 50 power supply relay, Engine component power supply relay, Fuse panel B, Fuse 2 (on fuse panel C), Fuse 4 (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J329 - Terminal 15 power supply relay Overview Of Relay Carrier

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J682 - Terminal 50 power supply relay Overview Of Relay Carrier

J757 - Engine component power supply relay

SB - Fuse panel B Fuse overview (SA), (SB), (SC)

SC1 - Fuse 1 (on fuse panel C) Fuse overview (SA), (SB), (SC)

SC2 - Fuse 2 (on fuse panel C) Fuse overview (SA), (SB), (SC)

SC4 - Fuse 4 (on fuse panel C) Fuse overview (SA), (SB), (SC)

T26 - 26-pin connector

T52b - 52-pin connector

(508) - Terminal 30 threaded connection (on E-box)

(A192) - Positive connection 3 (15a) (in instrument panel wiring harness)

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

(A217) - Positive connection 8 (15a) (in instrument panel wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

(B660) - Diagnostic terminal 50 connection (in main wiring harness)

Previous Diagram 119/2 (Tracks 1-14)

Next Diagram 119/4 (Tracks 29-42)
