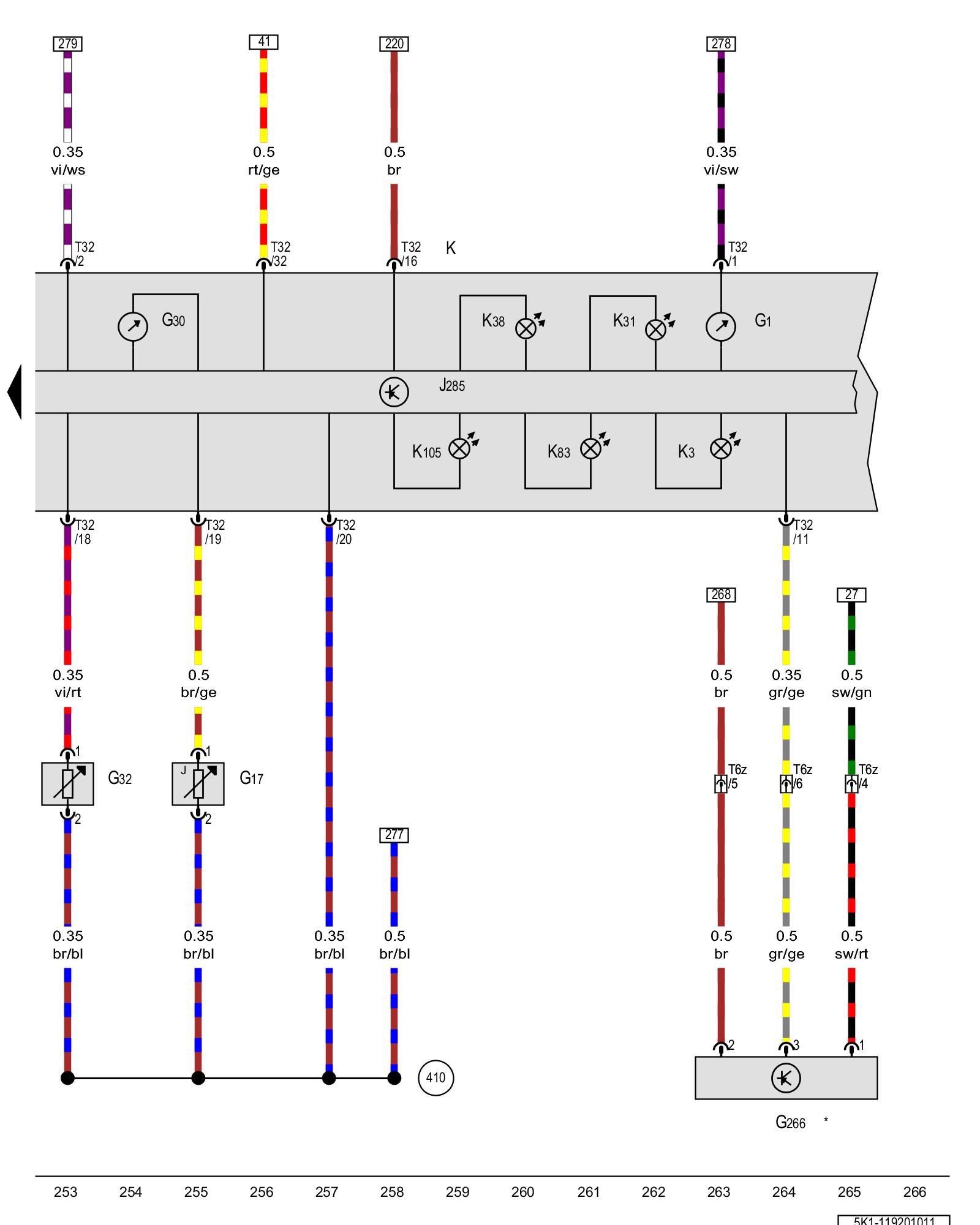

Diagram 119/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuel gauge, Outside air temperature sensor, Charge air pressure gauge, Instrument cluster, Oil pressure indicator lamp, Cruise control indicator lamp, Oil level indicator lamp, Malfunction indicator lamp, Low fuel level indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G1 - Fuel gauge

G17 - Outside air temperature sensor Locations

G30 - Charge air pressure gauge

G32 - Engine coolant level sensor Cooling System Components Overview

G266 - Oil level thermal sensor
Locations

J285 - Instrument cluster control module

K - Instrument cluster Control modules in front part of vehicle - Overview of Control Modules

K3 - Oil pressure indicator lamp

K31 - Cruise control indicator lamp

K38 - Oil level indicator lamp

K83 - Malfunction indicator lamp

K105 - Low fuel level indicator lamp

T6z - 6-pin connector Overview of connector stations and connectors

T32 - 32-pin connector

(410) - Sensor ground connection 1 (in main wiring harness)

* - Only for vehicles with flexible service interval reminder
