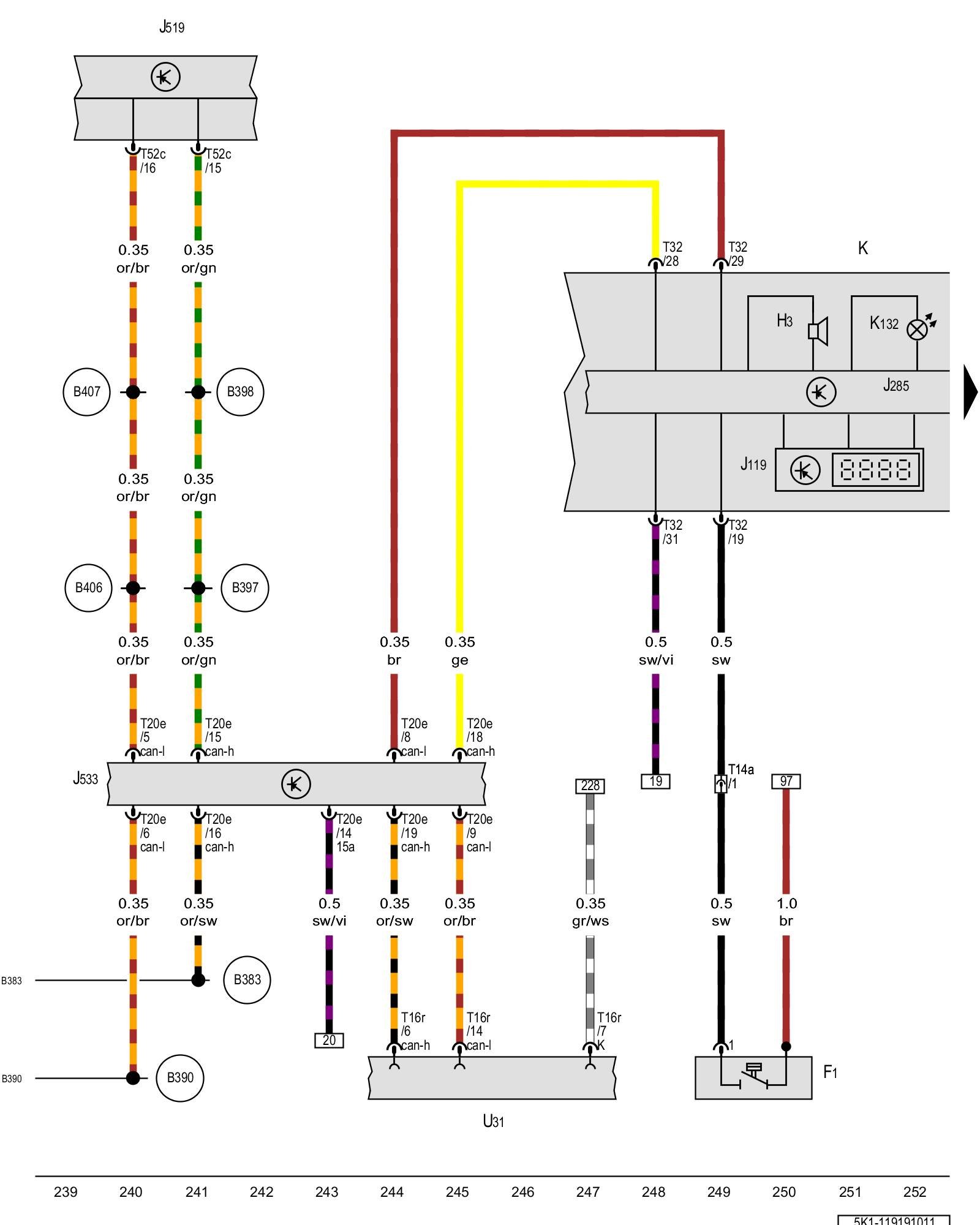

Diagram 119/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Oil pressure switch, Warning buzzer and tone, Vehicle electrical system control module, Data bus on board diagnostic interface, Instrument cluster, Electronic power control malfunction indicator lamp, Diagnostic connection





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F1 - Oil pressure switch
Locations

H3 - Warning buzzer and tone

J119 - Multifunction indicator

J285 - Instrument cluster control module

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J533 - Data bus on board diagnostic interface Control modules in front part of vehicle - Overview of Control Modules

K - Instrument cluster Control modules in front part of vehicle - Overview of Control Modules

K132 - Electronic power control malfunction indicator lamp

T14a - 14-pin connector, near the left headlamp Overview of connector stations and connectors

T16r - 16-pin connector

T20e - 20-pin connector

T32 - 32-pin connector

T52c - 52-pin connector

U31 - Diagnostic connection

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B398) - Comfort system CAN bus high connection 2 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

(B407) - Comfort system CAN bus low connection 2 (in main wiring harness)
