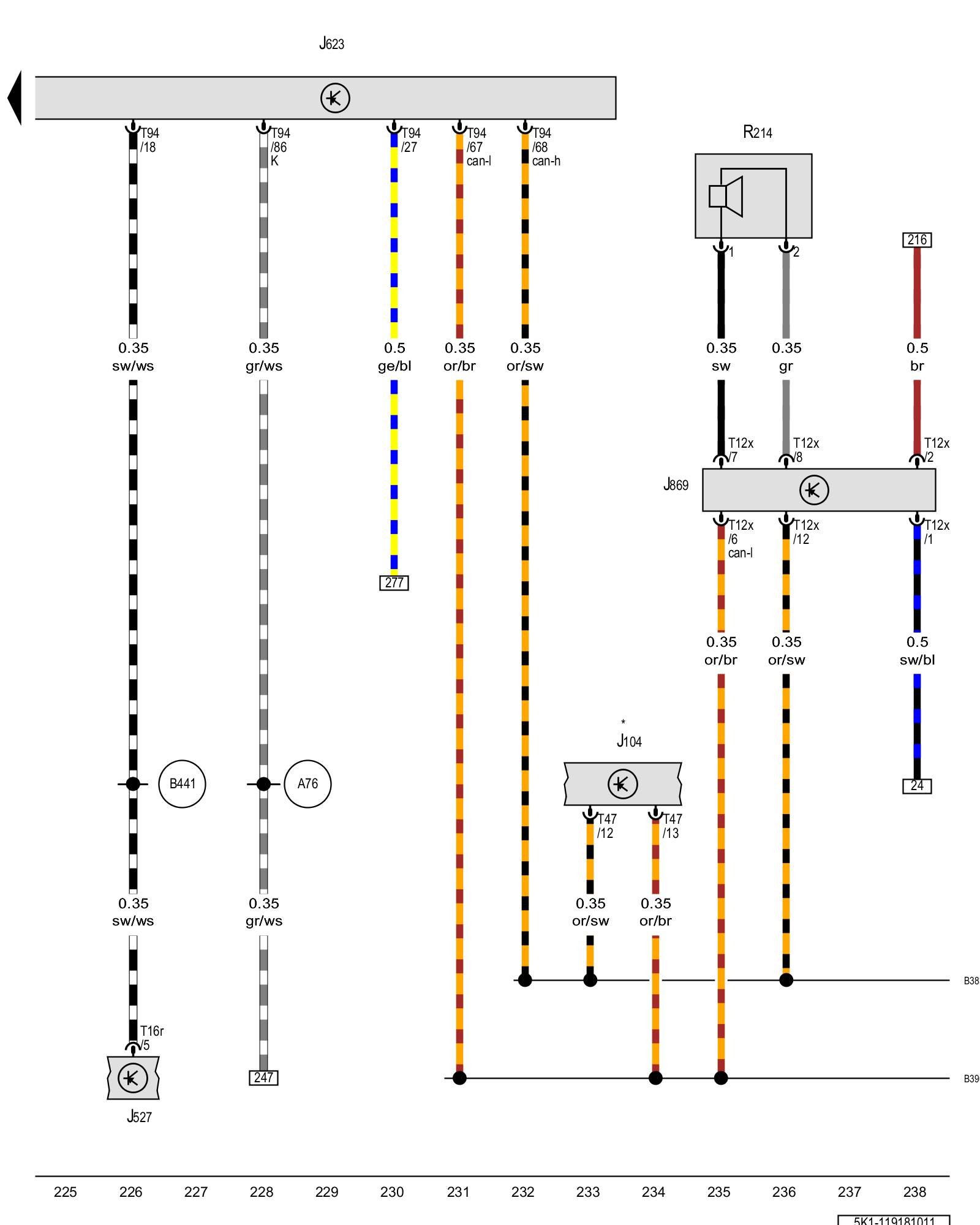

Diagram 119/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


ABS control module, Engine control module, Structure borne sound control module, Structure-borne sound actuator





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS control module Control modules in front part of vehicle - Overview of Control Modules [1][2]Diagrams

J527 - Steering column electronics control module Control modules in front part of vehicle - Overview of Control Modules

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

J869 - Structure borne sound control module

R214 - Structure-borne sound actuator

T12x - 12-pin connector

T16r - 16-pin connector

T47 - 47-pin connector

T94 - 94-pin connector

(A76) - K-diagnostic lead connection (in instrument panel wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B441) - Cruise control connection (in main wiring harness)

* - Refer to applicable ABS wiring diagram
