Diagram 119/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

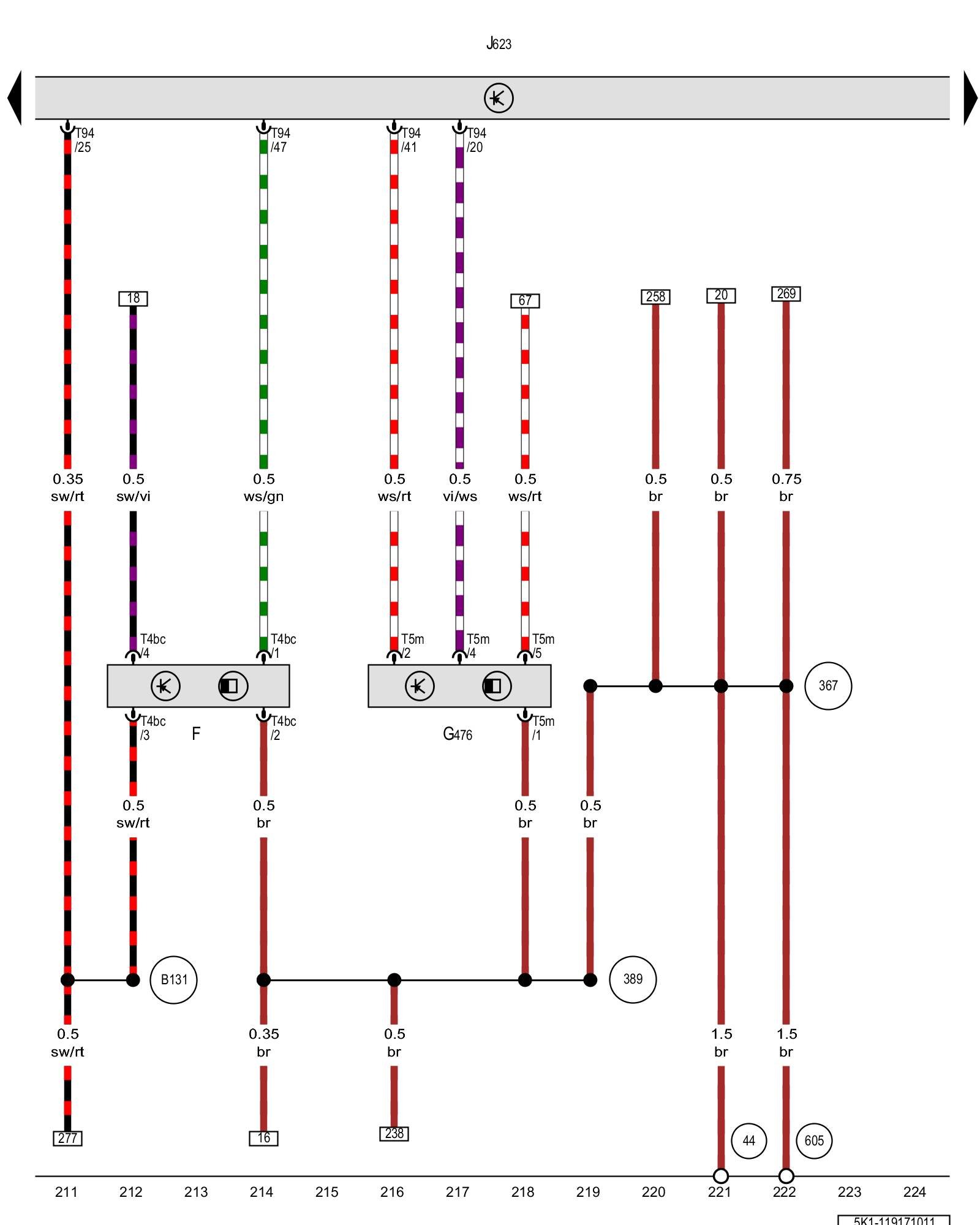

Brake lamp switch, Clutch position sensor, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch ABS Mark 70 (ABS/ASR) [1][2]Brake Light Switch

G476 - Clutch position sensor Diagrams

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

T4bc - 4-pin connector

T5m - 5-pin connector

T94 - 94-pin connector

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior

(367) - Ground connection 2 (in main wiring harness)

(389) - Ground connection 24 (in main wiring harness)

(605) - Ground connection on upper steering column Overview Of Ground Connections in Interior

(B131) - Connection (54) (in interior wiring harness)

Previous Diagram 119/16 (Tracks 197-210)

Next Diagram 119/18 (Tracks 225-238)
