Diagram 119/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

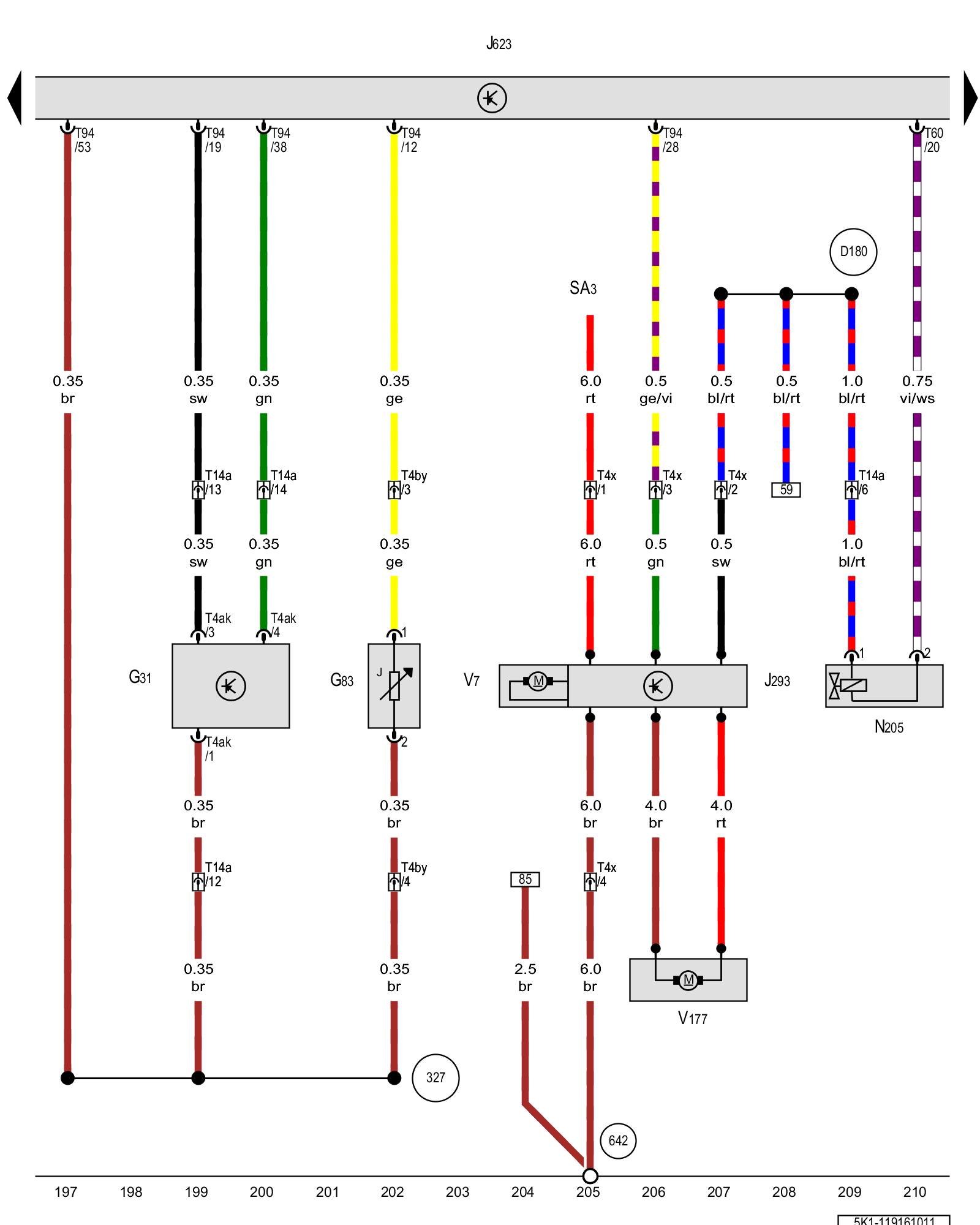

Charge air pressure sensor, Engine coolant temperature sensor on radiator outlet, Coolant fan control module, Engine control module, Camshaft adjustment valve 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge air pressure sensor
Locations
[1][2]Air Temperature Sensor ( Ambient / Intake )

G83 - Engine coolant temperature sensor on radiator outlet Cooling System Components Overview Engine Coolant Temperature Sensor On Radiator -G83-

J293 - Coolant fan control module Cooling System Components Overview

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

N205 - Camshaft adjustment valve 1
Locations
[1][2]Diagrams

SA3 - Fuse 3 (on fuse panel A) Fuse overview (SA), (SB), (SC)

T4ak - 4-pin connector

T4by - 4-pin connector, near the starter

T4x - 4-pin connector, on the coolant fan

T14a - 14-pin connector, near the left headlamp Overview of connector stations and connectors

T60 - 60-pin connector

T94 - 94-pin connector

V7 - Coolant fan Cooling System Components Overview

V177 - Coolant fan 2 Cooling System Components Overview

(327) - Sensor ground connection (in engine compartment wiring harness)

(642) - Electronic fan control ground connection Overview Of Ground Connections in Engine Compartment

(D180) - Connection (87a) (in engine compartment wiring harness)

* - From June 2010

Previous Diagram 119/15 (Tracks 183-196)

Next Diagram 119/17 (Tracks 211-224)
