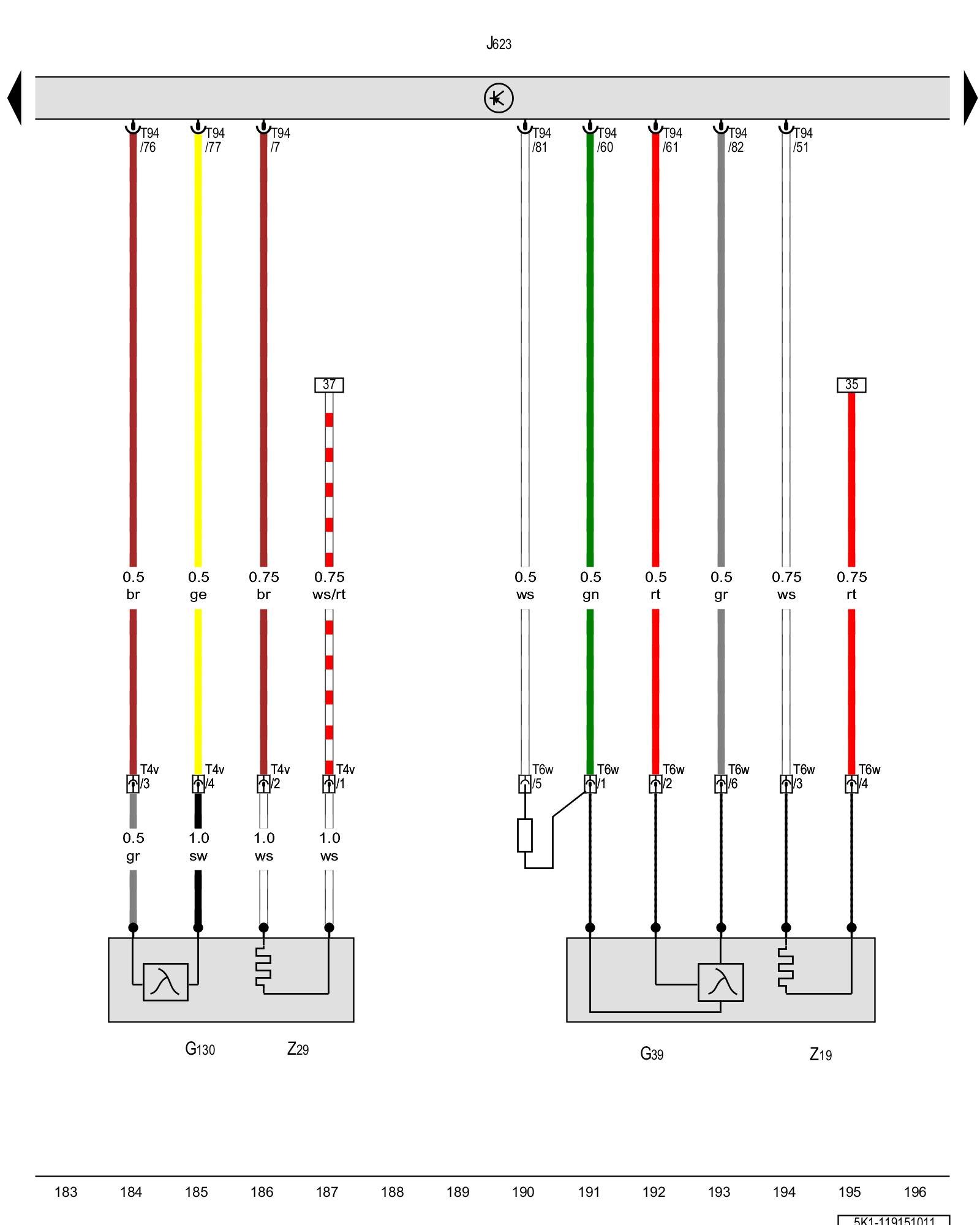

Diagram 119/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Heated oxygen sensor, Oxygen sensor after three way catalytic converter, Engine control module, Heater for oxygen sensor 1 after catalytic converter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated oxygen sensor Exhaust System Overview Heated Oxygen Sensor -G39- / Oxygen Sensor Heater -Z19-

G130 - Oxygen sensor after three way catalytic converter Exhaust System Overview Oxygen Sensor After Converter -G130- / Heater For Oxygen Sensor 1 After Converter -Z29-

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

T4v - 4-pin connector

T6w - 6-pin connector, in the engine compartment, rear

T94 - 94-pin connector

Z19 - Oxygen sensor heater Exhaust System Overview Heated Oxygen Sensor -G39- / Oxygen Sensor Heater -Z19-

Z29 - Heater for oxygen sensor 1 after catalytic converter Oxygen Sensor After Converter -G130- / Heater For Oxygen Sensor 1 After Converter -Z29-
