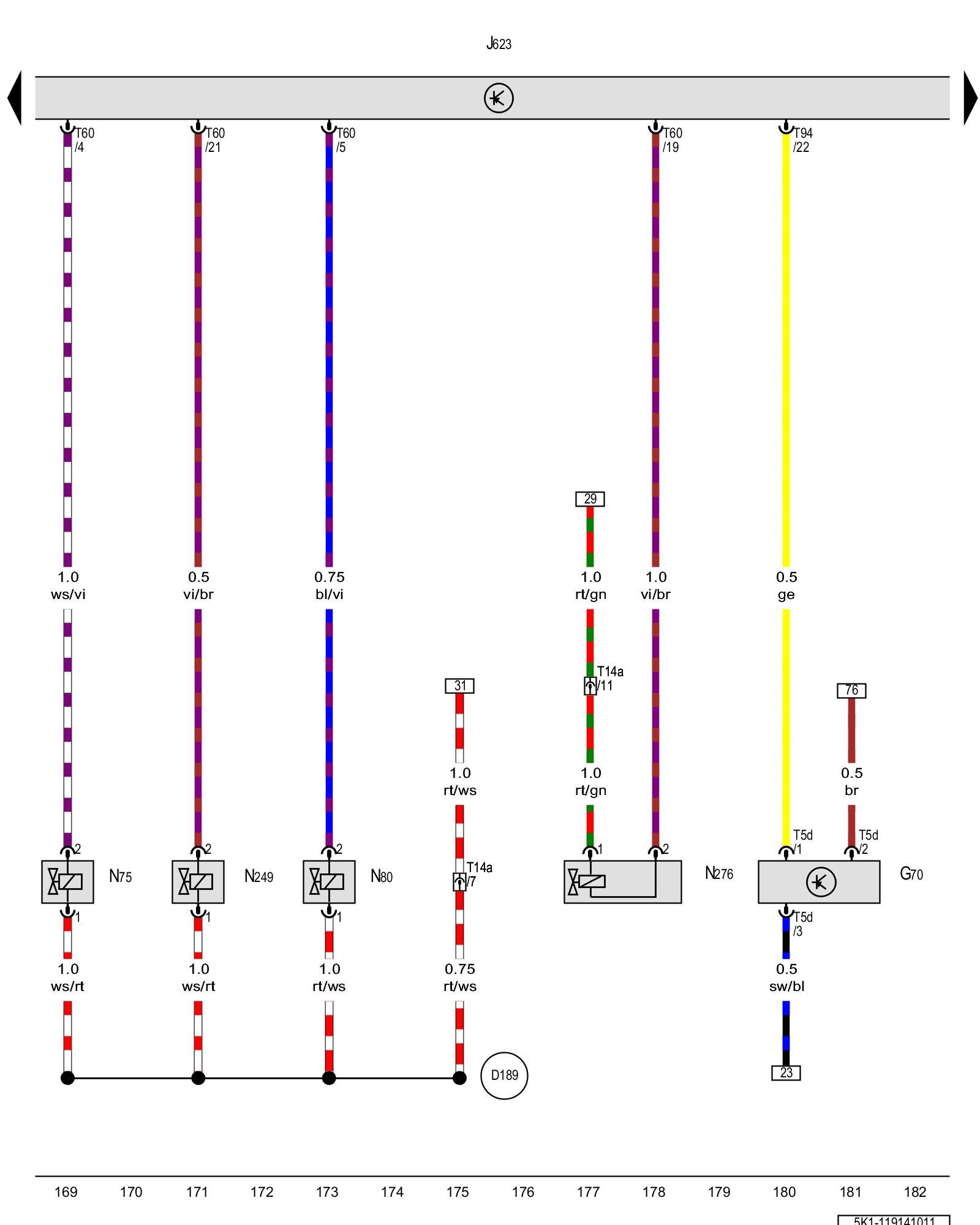

Diagram 119/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Mass airflow sensor, Engine control module, Wastegate bypass regulator valve, EVAP canister purge regulator valve 1, Turbocharger recirculation valve, Fuel pressure regulator valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G70 - Mass airflow sensor
Locations
[1][2]Air Flow Meter/Sensor

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

N75 - Wastegate bypass regulator valve
Locations
[1][2]Diagrams

N80 - EVAP canister purge regulator valve 1
Locations
[1][2]Canister Purge Control Valve

N249 - Turbocharger recirculation valve
Locations
[1][2]Diagrams

N276 - Fuel pressure regulator valve
Locations
Diagrams

T5d - 5-pin connector

T14a - 14-pin connector, near the left headlamp Overview of connector stations and connectors

T60 - 60-pin connector

T94 - 94-pin connector

(D189) - Connection (87a) (in engine wiring harness)
