Diagram 119/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

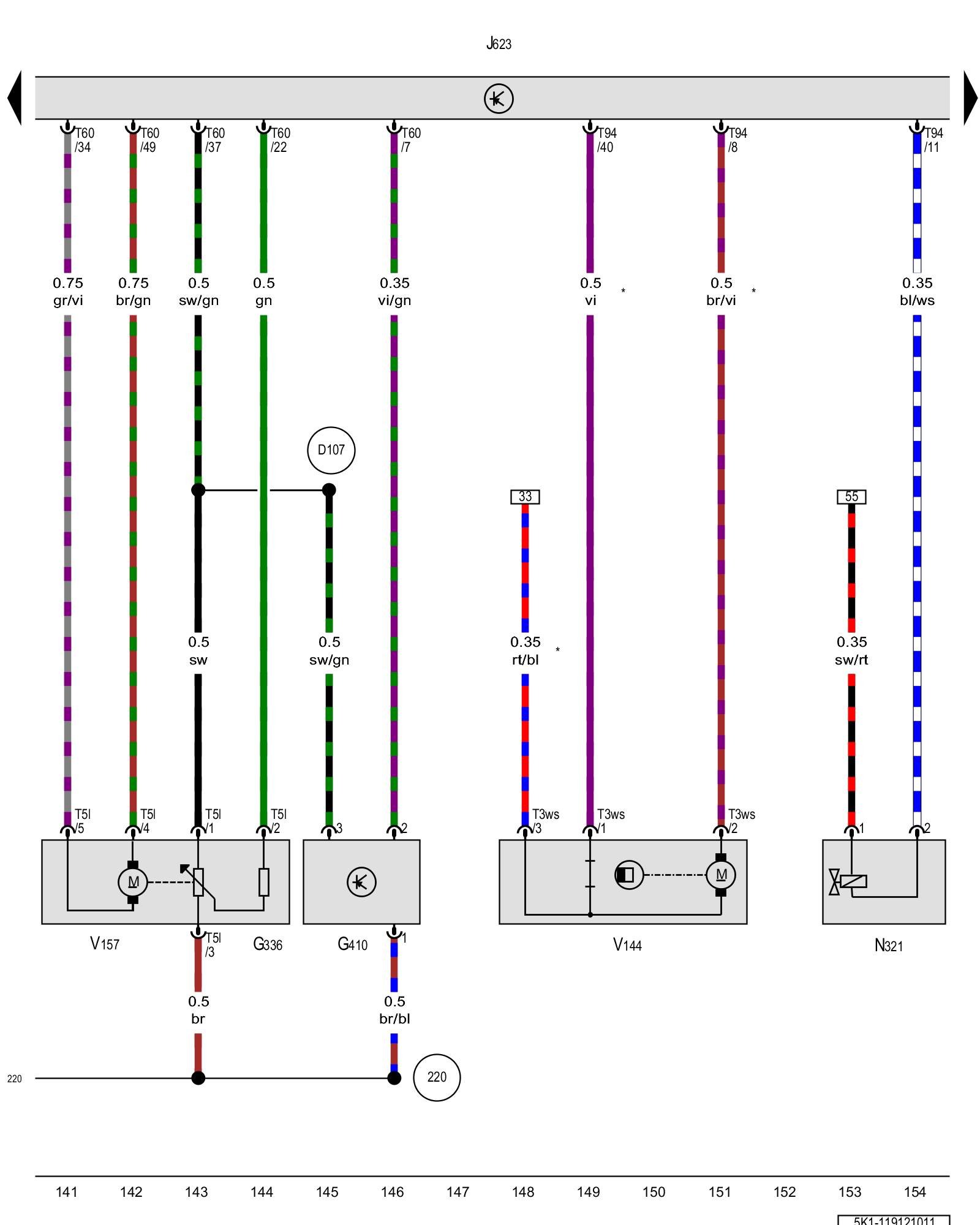

Intake manifold runner position sensor, Low fuel pressure sensor, Engine control module, Exhaust door valve 1, Leak detection pump, Intake flap motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G336 - Intake manifold runner position sensor
Locations
[1][2]Diagrams

G410 - Low fuel pressure sensor 2.0L CRZA

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

N321 - Exhaust door valve 1

T3ws - 3-pin connector

T5l - 5-pin connector

T60 - 60-pin connector

T94 - 94-pin connector

V144 - Leak detection pump, in the right rear wheel housing
Locations
[1][2]Diagrams

V157 - Intake flap motor
Locations
[1][2]Diagrams

(220) - Sensor ground connection (in engine compartment wiring harness)

(D107) - Connection (5) (in engine compartment wiring harness)

* - USA only

Previous Diagram 119/11 (Tracks 127-140)

Next Diagram 119/13 (Tracks 155-168)
