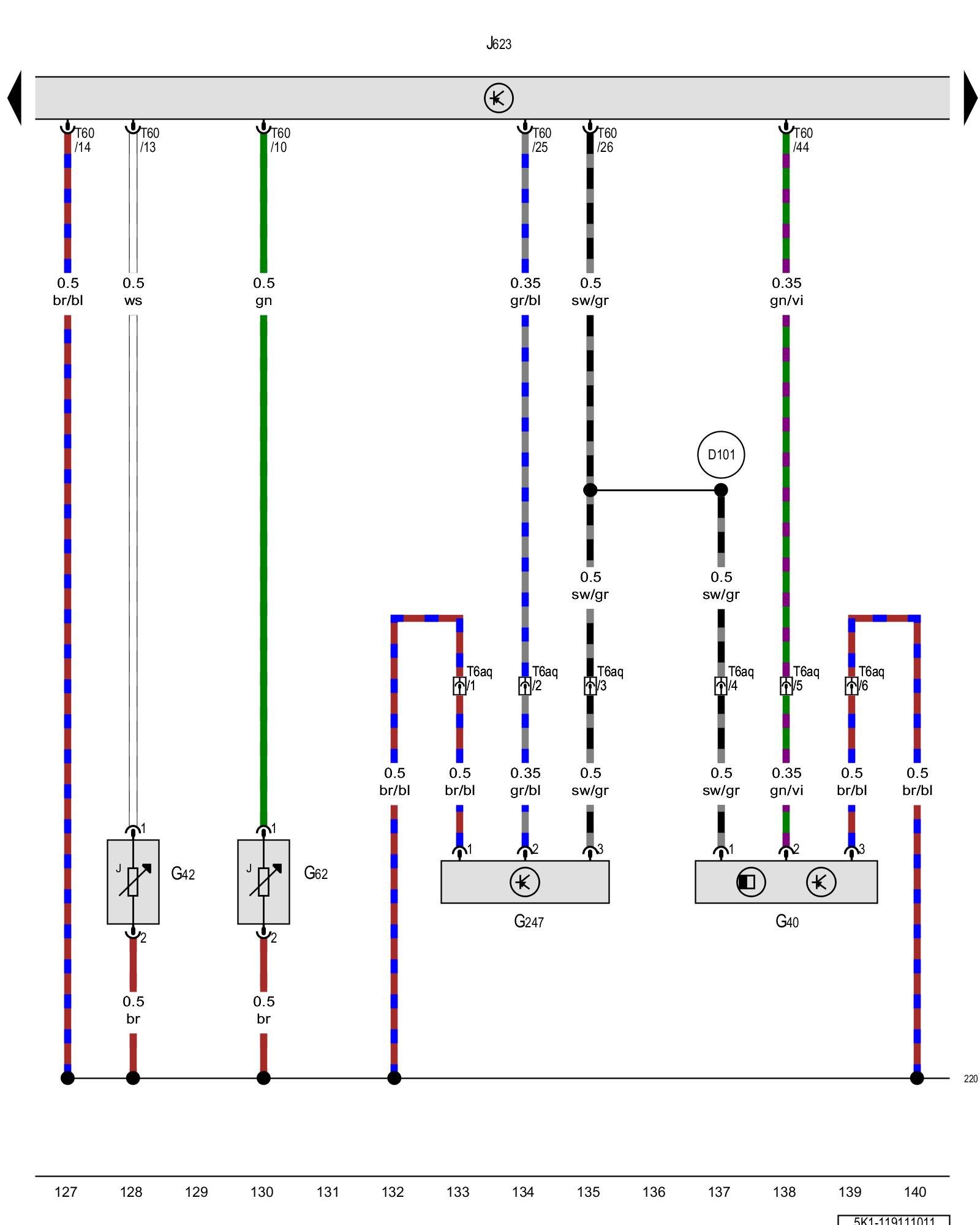

Diagram 119/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Camshaft position sensor, Intake air temperature sensor, Engine coolant temperature sensor, Fuel pressure sensor, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft position sensor
Locations
[1][2]Camshaft Position Sensor

G42 - Intake air temperature sensor
Locations
[1][2]Air Temperature Sensor ( Ambient / Intake )

G62 - Engine coolant temperature sensor
Locations
Engine Coolant Temperature Sensor -G62-

G247 - Fuel pressure sensor
Locations
Diagrams

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

T6aq - 6-pin connector, on the engine, front

T60 - 60-pin connector

(220) - Sensor ground connection (in engine compartment wiring harness)

(D101) - Connection (1) (in engine compartment wiring harness)
