Diagram 119/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


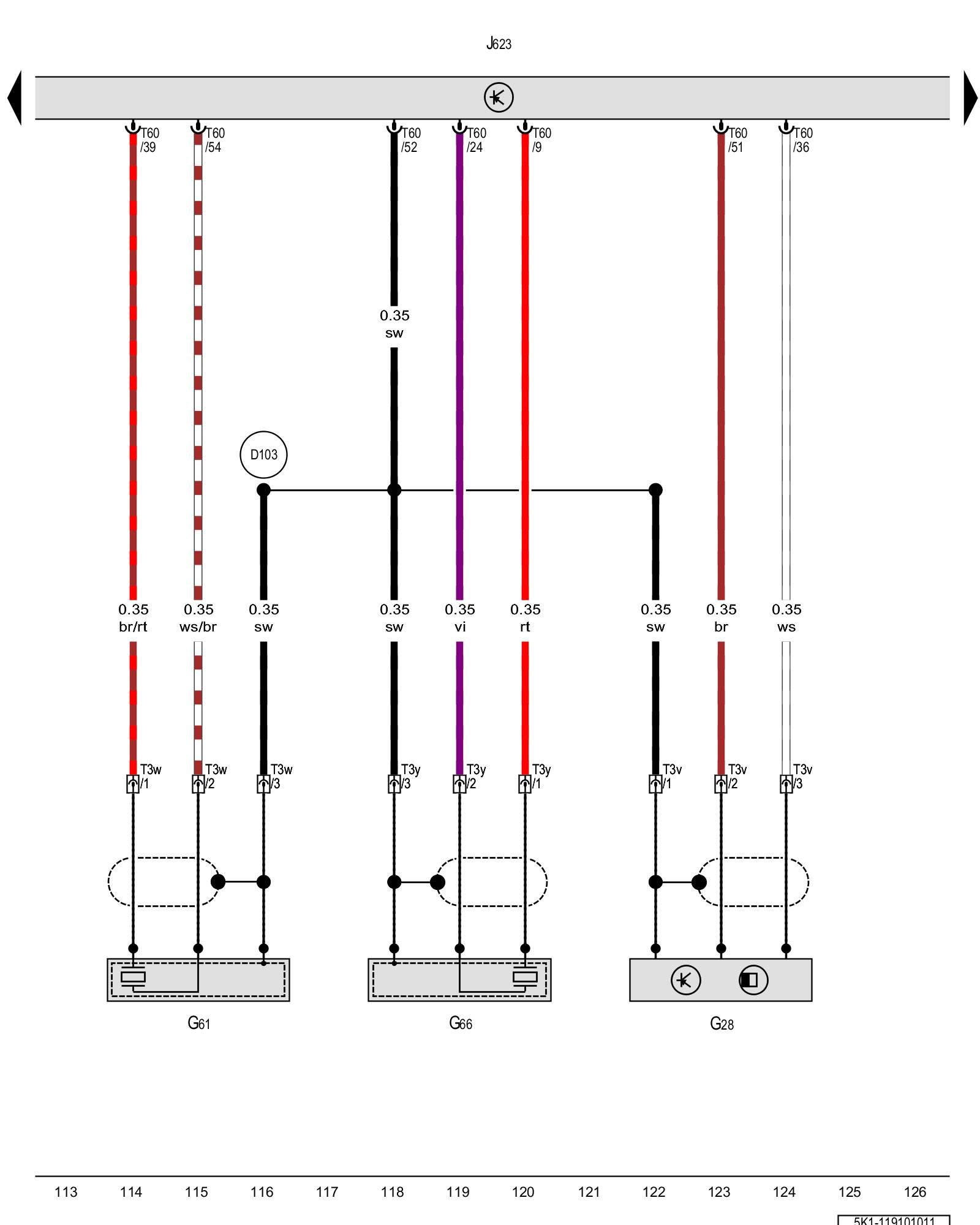

Engine speed sensor, Knock sensor 1, Knock sensor 2, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine speed sensor
Locations
[1][2]Diagrams

G61 - Knock sensor 1
Locations

G66 - Knock sensor 2
Locations

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

T3v - 3-pin connector

T3w - 3-pin connector

T3y - 3-pin connector, on the front engine mount

T60 - 60-pin connector

(D103) - Connection (3) (in engine compartment wiring harness)

Previous Diagram 119/9 (Tracks 99-112)

Next Diagram 119/11 (Tracks 127-140)
