Parallel Parking Assistance Control Module -J791-






Parking Aid System

Parallel parking assistance control module -J791-

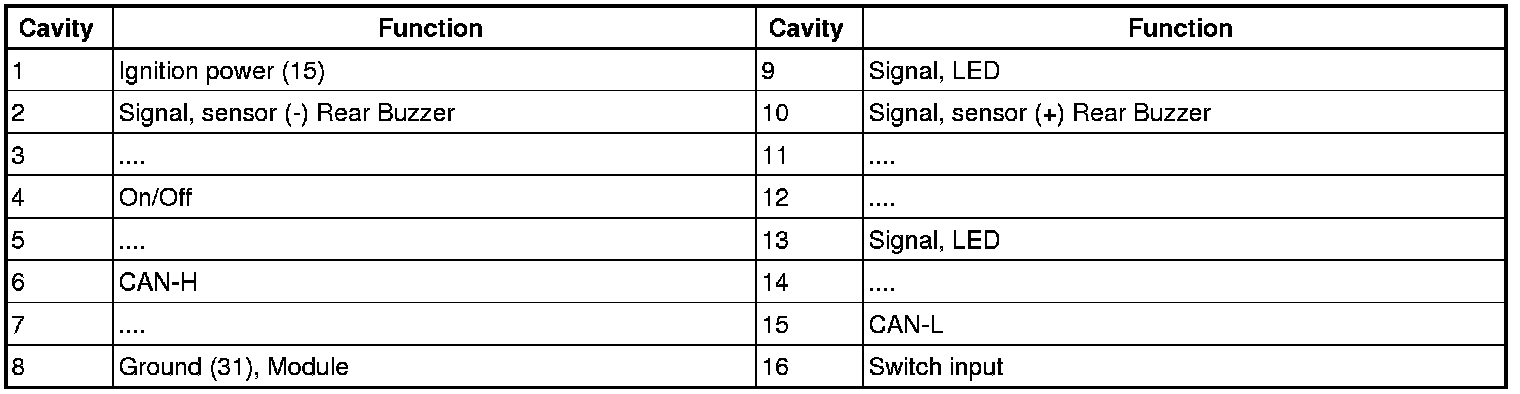

Connector A - 16 pins

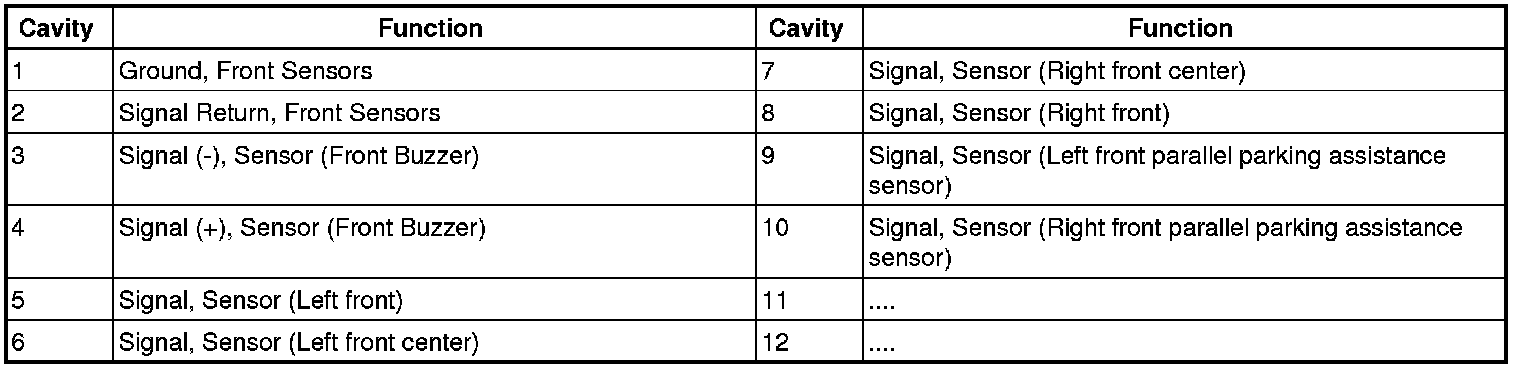

Connector B - 12 pins

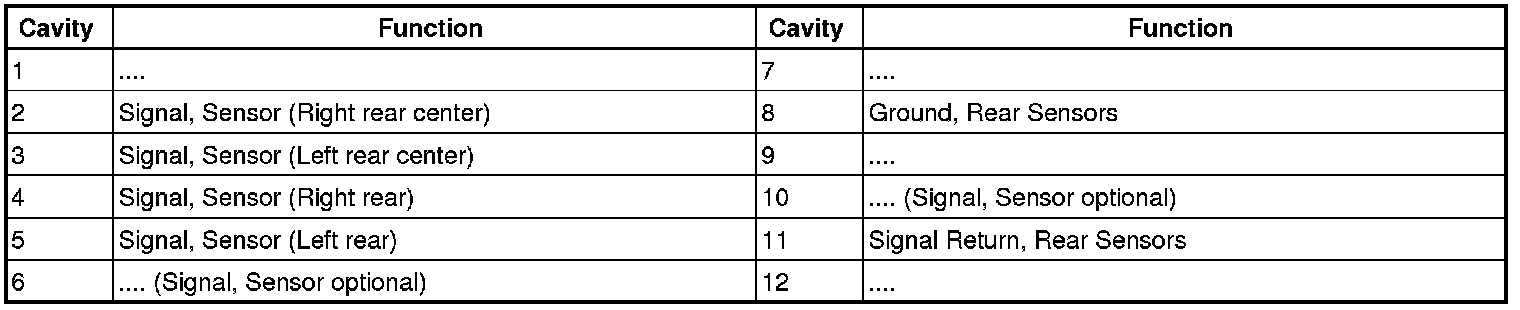

Connector C - 12 pins
