LR Door Control Module -J388- / RR Door Control Module -J389-






Comfort System - Connector Views

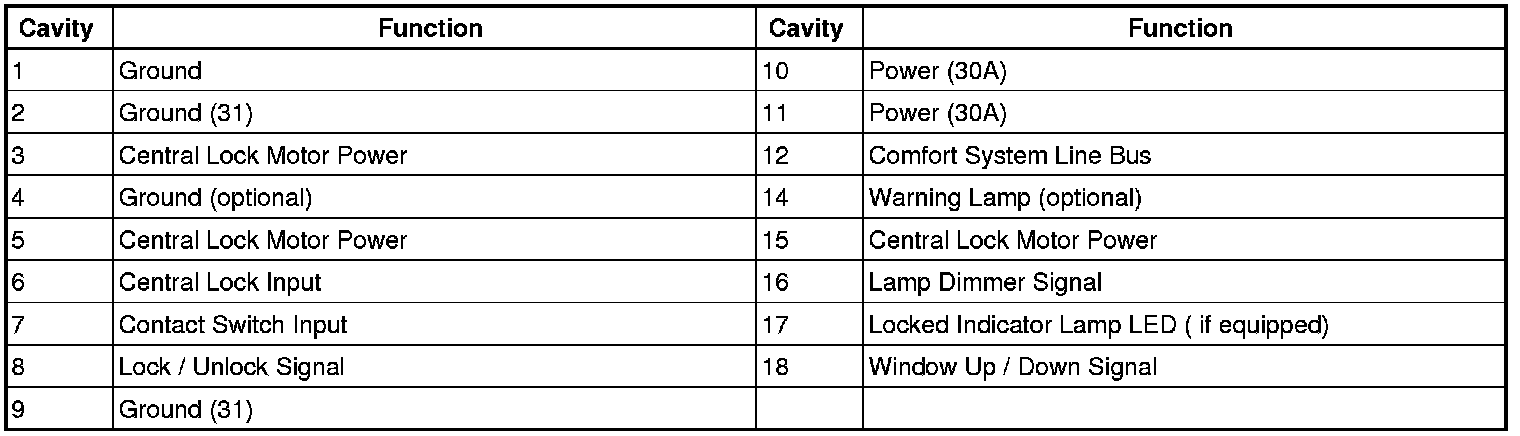

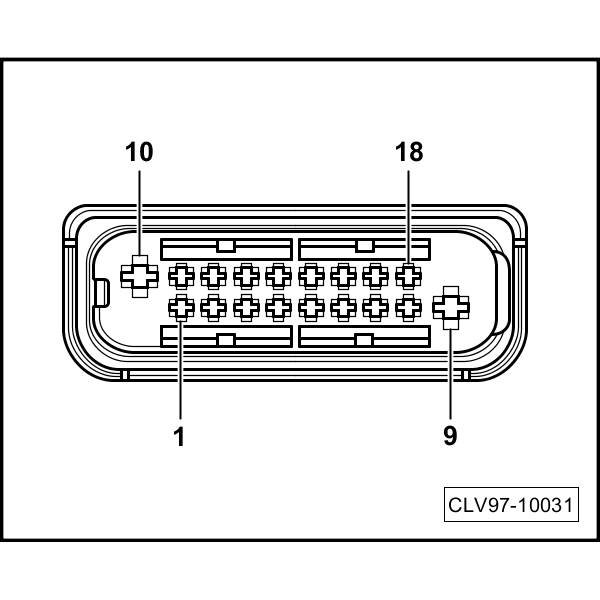

Left rear door control module -J388- / Right rear door control module -J389-
