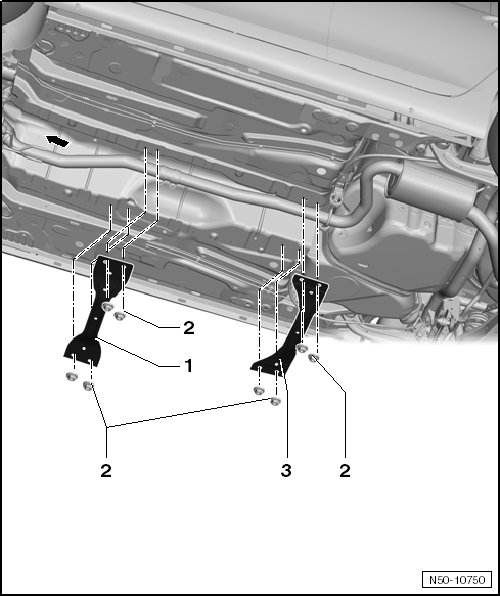

Tunnel Bridge Overview

Tunnel Bridge Overview

• - Arrow - points in direction of travel.






1 Front Tunnel Bridge

• Removing:

- Remove the nuts - 2 - (2 on each side).

2 Nut

• Tightening specification: 20 Nm

• Quantity: 4 per tunnel bridge

3 Rear Tunnel Bridge

• Removing:

- Remove the nuts - 2 - (2 on each side).
