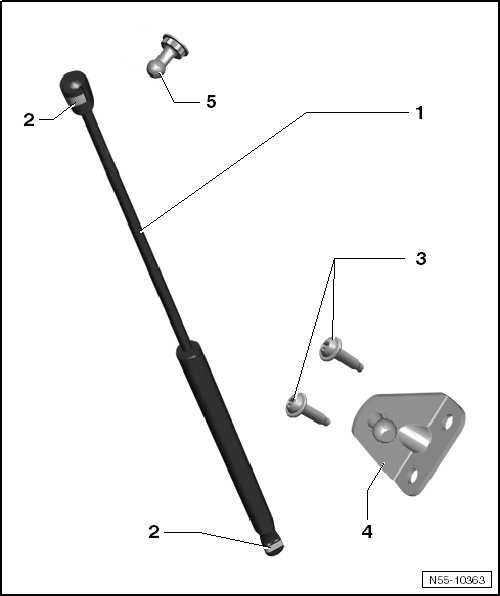

Rear Lid Gas-Filled Strut Overview

Rear Lid Gas-Filled Strut Overview






1 Gas Strut

• Removing and installing, refer to => [ Rear Lid Gas Strut ] Rear Lid Gas Strut.

• Venting gas, refer to => [ Rear Lid Gas Strut, Venting ] Procedures.

2 Clips

3 Bolt

• 10 Nm

• Quantity: 2

4 Angle Bracket

5 Ball Head Pin

• 20 Nm and 90°
