Rear Lid Unlocking Element with Rearview Camera

Removing






- Remove the rear lid trim panel..

- for the work procedures for the unlocking element with a rearview camera.

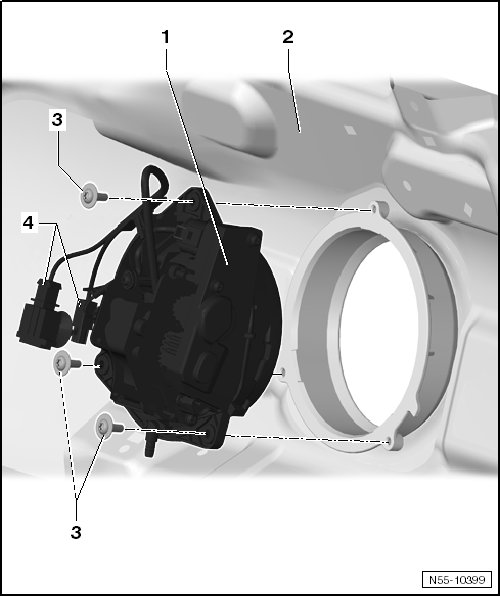

- Disconnect the connectors - 4 - from unlocking element - 1 -.

- Remove the bolts - 3 -.

- Remove the unlocking element - 1 - from the rear lid - 2 -.

Installation






Installation of unlocking element - 1 - is the same in reverse order.

Screw - 3 - tightening specification: 4 Nm.

- for the work procedures for the unlocking element with a rearview camera.

• Perform a function test on the unlocking components before closing the rear lid.
