CD Changer: Service and Repair

CD Changer

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

• Radio Removal Tools (3316)

• The CD changer is not faulty if the CD changer plays commercially available CDs, but not self-burned CDs. Replacing the CD changer for this reason is not permitted.

• Mix CDs (CDs that contain computer data and also music) cannot be played.

• Music CDs with 8 cm diameter (mini-discs) cannot be played back.

• When replacing the CD changer, the radio functions must always be coded again.

Removing

• The CD changer is installed in the storage compartment under the center armrest.

Perform the following steps before starting:

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove any CDs that may still be inside the CD changer. Refer to the Owner's Manual.

- Open the center armrest.

- Slide (3316) into slots designed for them on CD changer at left and right - arrows - until they engage audibly.

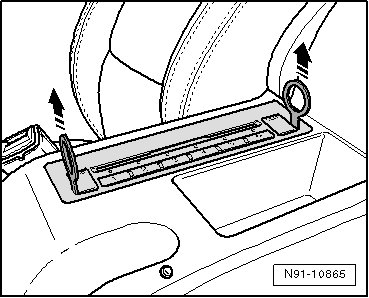

- Remove the CD changer from storage compartment using radio removal tools - arrows -.






- Press on retaining clamp - arrow - and pull out radio removal tools from removed unit.






- Disconnect the connector inside the CD changer connection.

Installing

Install in reverse order of removal.
