Windshield Washer Reservoir: Description and Operation

Windshield and Headlamp Washer Fluid Reservoir

Tank for windshield washer system and headlamp cleaning system is in three parts and designed to be fitted together. In order to guarantee the correct position of the parts with respect to each other, make sure that guides present on the individual components engage in each other during assembly.

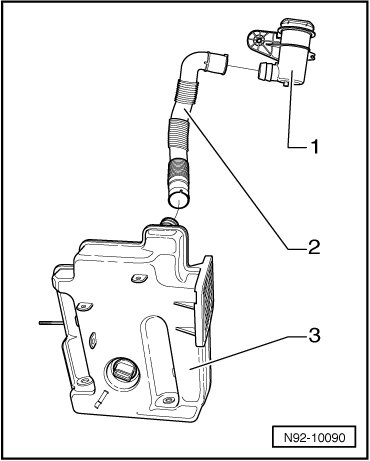

1 Filler tube for tank for windshield washer system and headlamp cleaning system
2 Filler tube connecting pipe to tank (is removed and installed together with tank)
3 Washer fluid reservoir

There are two different versions of the windshield and headlamp washer fluid reservoir depending on the vehicle equipment level.

• Tank for windshield washer system and headlamp cleaning system, removing and installing, refer to => [ Windshield and Headlamp Washer System Reservoir ] Windshield and Headlamp Washer System Reservoir.

• Windshield and headlamp washer fluid reservoir, removing and installing (GTI), refer to=> [ Windshield and Headlamp Washer Fluid Reservoir, GTI ] Windshield and Headlamp Washer Fluid Reservoir, GTI.
