Door Trim Panels, Golf from MY 04, Window Crank

Window Crank

Removing

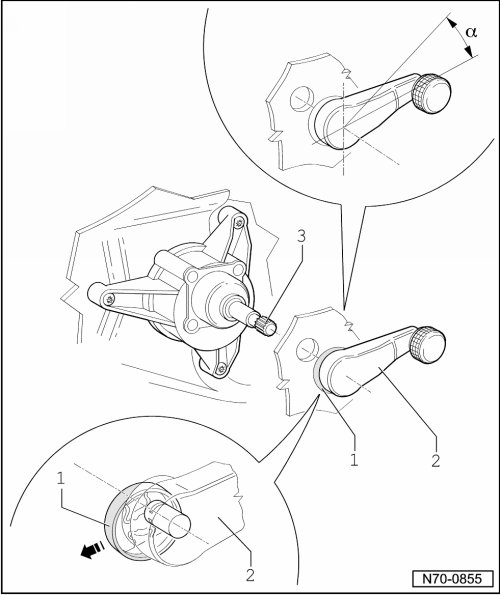

- Press circlip - 1 - forward in direction of travel - arrow - and remove window crank - 2 - from drive mechanism - 3 -.






Installing

- Install in reverse order of removal.

• After installation, window crank on right side of vehicle must stand at "5:00" when window is closed.

• After installation, window crank on left side of vehicle must stand at "7:00" when window is closed.

• This corresponds to a 30° - angle alpha - position.

• Deviation of window cranks to each other must be 6° max.
