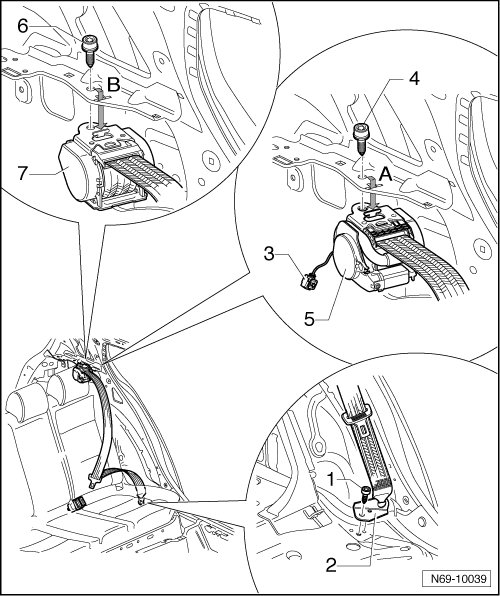

Rear Outer Seat Belts Assembly Overview







Rear Outer Seat Belts Assembly Overview






1 Bolt

• 40 Nm

2 Belt anchor

3 Wiring harness

4 Bolt

• 40 Nm

5 Automatic belt retractor with belt tensioner

6 Bolt

• 40 Nm

7 Automatic belt retractor without belt tensioner
