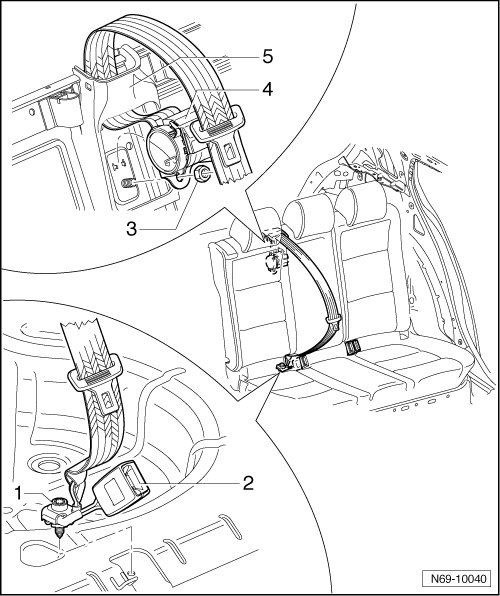

Rear Center Three-Point Seat Belt Assembly Overview







Rear Center Three-Point Seat Belt Assembly Overview






1 Bolt

• 40 Nm

2 Belt latch

3 Hex nut

• 40 Nm

4 Automatic belt retractor

5 Console
