Rear Double Belt Latch

Rear Double Belt Latch

Removing

- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat

- Remove the backrest. Refer to => [ Backrest ] Backrest

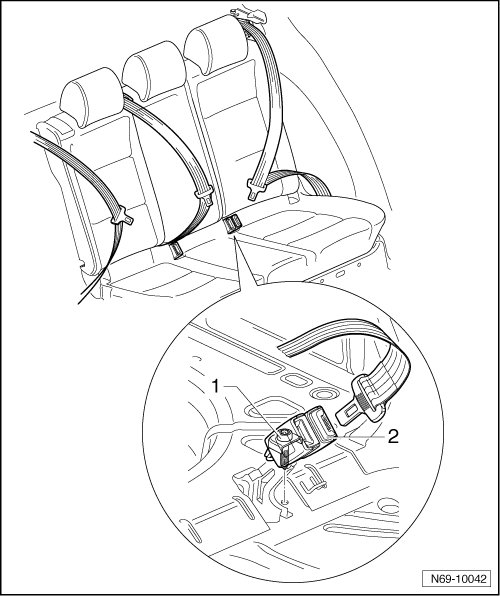

- Remove screw - 1 - (40 Nm) and remove double seat belt latch - 2 - from body.






Installing

- Install in reverse order of removal.
