Center Rear Lap Belt

Center Rear Lap Belt

Removing

- Remove the seat bench. Refer to => [ Bench Seat ] Bench Seat

- Remove the backrest. Refer to => [ Backrest ] Backrest

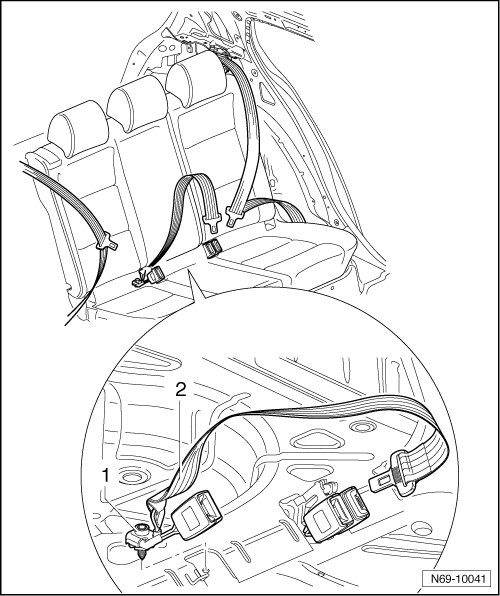

- Remove the bolt - 1 - (40 Nm) and remove lap belt - 2 - from body.






Installing

- Install in reverse order of removal.
