Turbocharger: Specifications

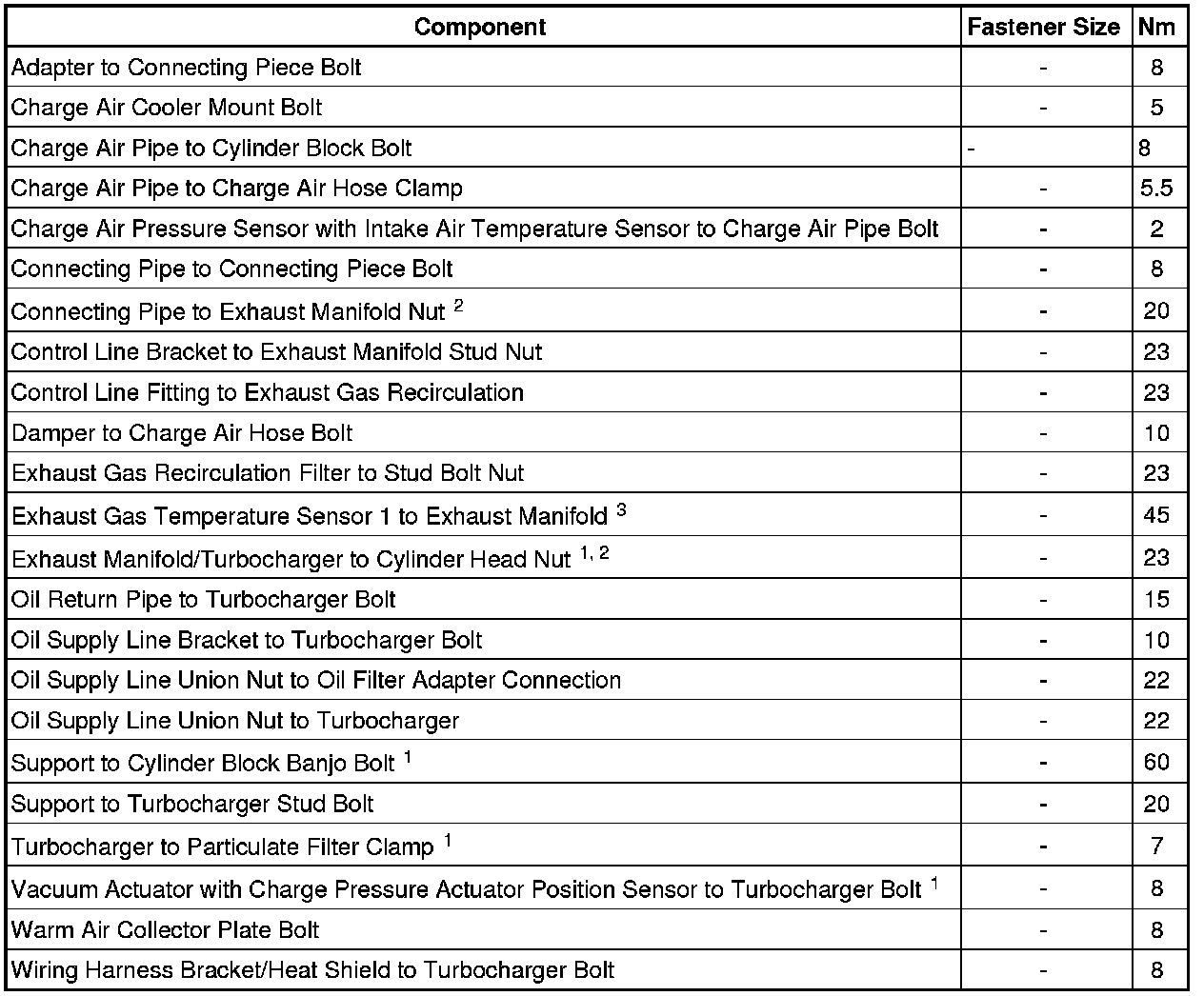

Fastener Tightening Specifications






• 1 Always replace

• 2 Coat the stud bolts with hot bolt paste (G 052 112 A3)

• 3 Coat only the threads with hot bolt paste (G 052 112 A3)
