Diagram 59/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

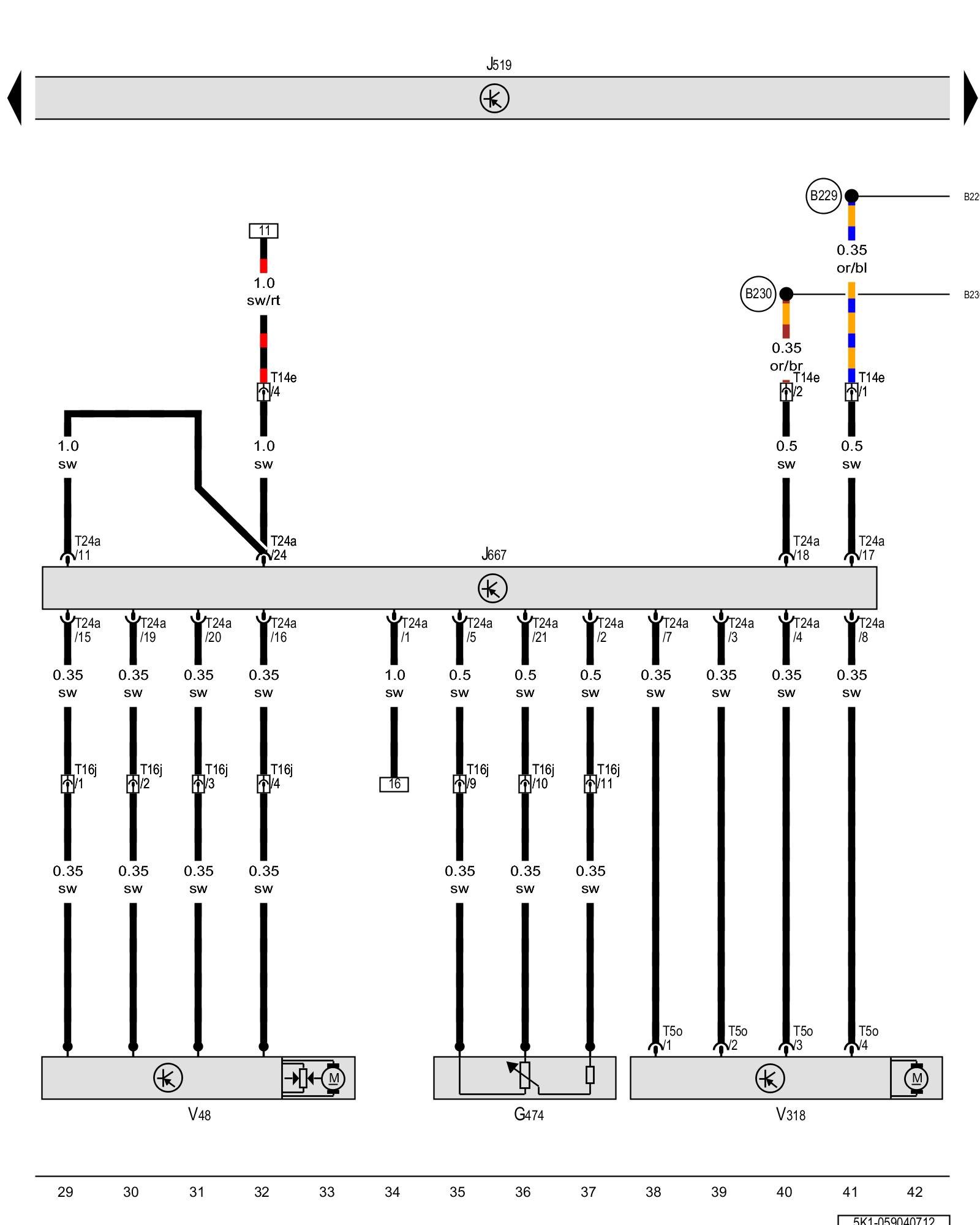

Left swivel module position sensor, Vehicle electrical system control module, Left headlamp power output stage, Left headlamp beam adjustment motor, Left adaptive cornering lamp motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G474 - Left swivel module position sensor

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J667 - Left headlamp power output stage, on the left headlamp

T5o - 5-pin connector Overview of connector stations and connectors

T14e - 14-pin connector, on the left headlamp

T16j - 16-pin connector, under the instrument panel, left

T24a - 24-pin connector

V48 - Left headlamp beam adjustment motor

V318 - Left adaptive cornering lamp motor

(B229) - High bus connection (in interior wiring harness)

(B230) - Low bus connection (in interior wiring harness)

Previous Diagram 59/3 (Tracks 15-28)

Next Diagram 59/5 (Tracks 43-56)
