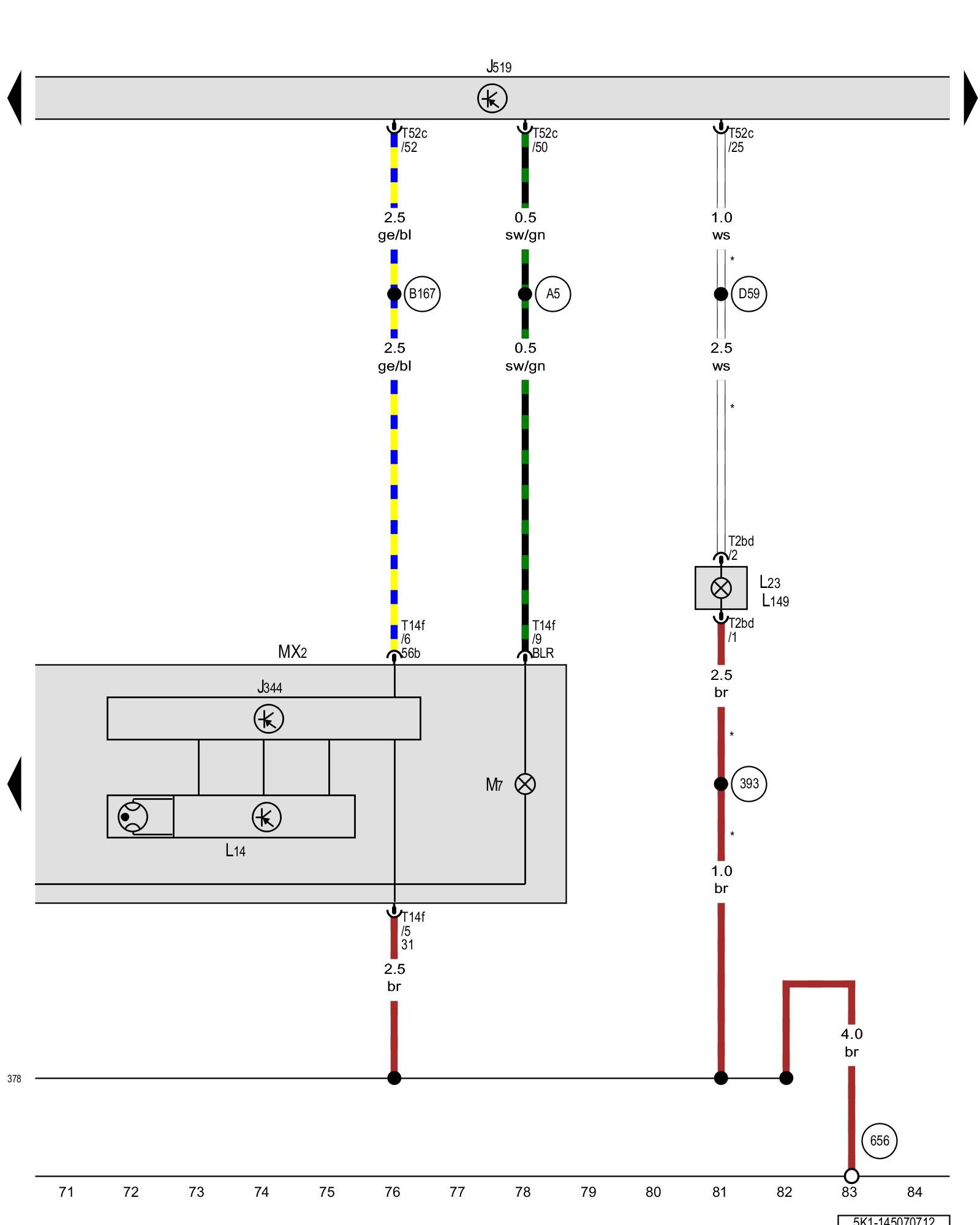

Diagram 145/7 (Tracks 71-84)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Right HID headlamp control module, Vehicle electrical system control module, Right HID headlamp bulb, Right front fog lamp bulb, Right cornering lamp bulb, Right front turn signal bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J344 - Right HID headlamp control module, on the left headlamp, on the right headlamp

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

L14 - Right HID headlamp bulb

L23 - Right front fog lamp bulb

L149 - Right cornering lamp bulb

MX2 - Right front headlamp

M7 - Right front turn signal bulb

T2bd - Double connector

T14f - 14-pin connector

T52c - 52-pin connector

(378) - Ground connection 13 (in main wiring harness)

(393) - Ground connection 28 (in main wiring harness)

(656) - Ground connection on right headlamp Overview Of Ground Connections in Engine Compartment

(A5) - Right turn signal positive connection (in instrument panel wiring harness)

(B167) - Connection 56b (in interior wiring harness)

(D59) - Fog lamp connection (in engine compartment wiring harness)

* - Only for vehicles with fog lamps
