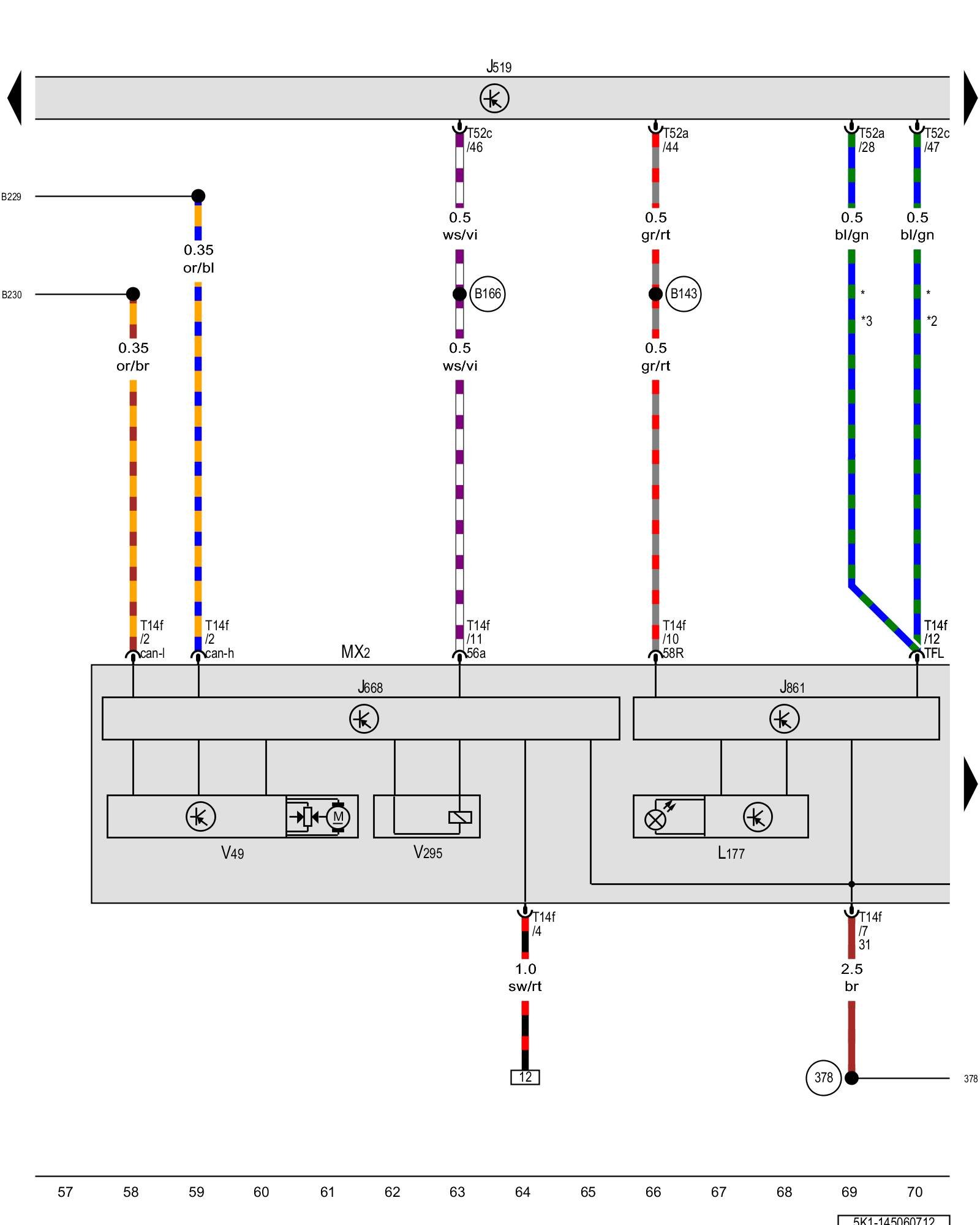

Diagram 145/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Right headlamp power output stage, Right daytime running lamp and parking lamp LED module, Right headlamp beam adjustment motor, Right low beam headlamp reflector motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J668 - Right headlamp power output stage, on the left headlamp, on the right headlamp

J861 - Right daytime running lamp and parking lamp control module, on the left headlamp, in the left headlamp, in the left headlamp, in the right headlamp

L177 - Right daytime running lamp and parking lamp LED module

MX2 - Right front headlamp

T14f - 14-pin connector

T52a - 52-pin connector

T52c - 52-pin connector

V49 - Right headlamp beam adjustment motor

V295 - Right low beam headlamp reflector motor

(378) - Ground connection 13 (in main wiring harness)

(B143) - Positive connection (58R) (in interior wiring harness)

(B166) - Connection 56a (in interior wiring harness)

(B229) - High bus connection (in interior wiring harness)

(B230) - Low bus connection (in interior wiring harness)

* - Only for vehicles with daytime running lamps

*2 - Only for vehicles without rear fog lamps

*3 - Only for vehicles with fog lamps
