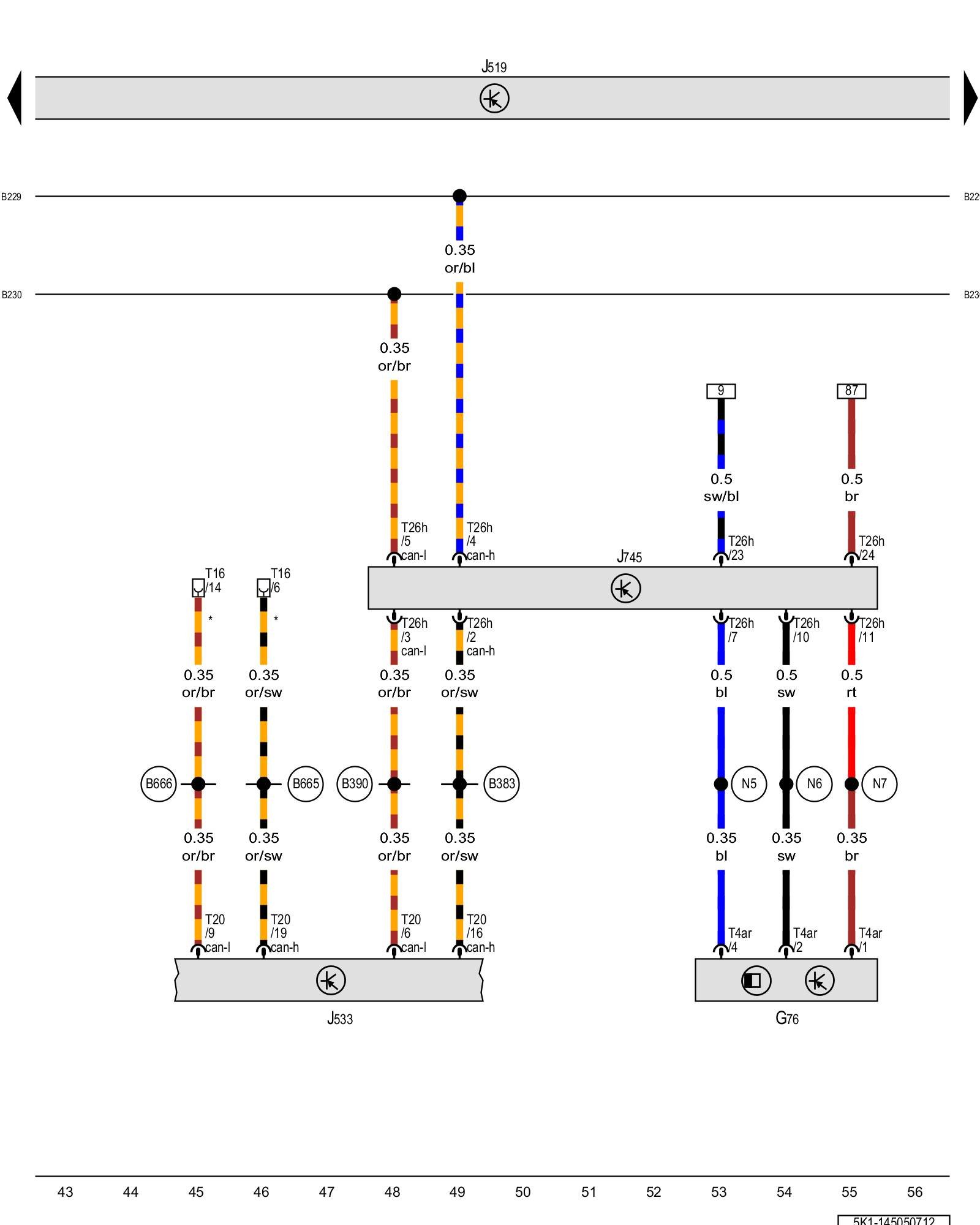

Diagram 145/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left rear level control system sensor, Vehicle electrical system control module, Data bus on board diagnostic interface, Cornering lamp and headlamp range control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G76 - Left rear level control system sensor Electronic Damping Component Views LR Level Control System Sensor -G76-

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J533 - Data bus on board diagnostic interface, in the left footwell, near the center console Control modules in front part of vehicle - Overview of Control Modules

J745 - Cornering lamp and headlamp range control module, on the right glove compartment Control modules in front part of vehicle - Overview of Control Modules

T4ar - 4-pin connector

T16 - 16-pin connector, under the instrument panel, left

T20 - 20-pin connector

T26h - 26-pin connector

(B229) - High bus connection (in interior wiring harness)

(B230) - Low bus connection (in interior wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B665) - CAN bus extended high connection 1 (in instrument panel wiring harness)

(B666) - CAN bus extended low connection 1 (in instrument panel wiring harness)

(N5) - Connection 4 (in headlamp range control wiring harness)

(N6) - Connection 5 (in headlamp range control wiring harness)

(N7) - Connection 6 (in headlamp range control wiring harness)

* - Diagnostic connector
