Diagram 145/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

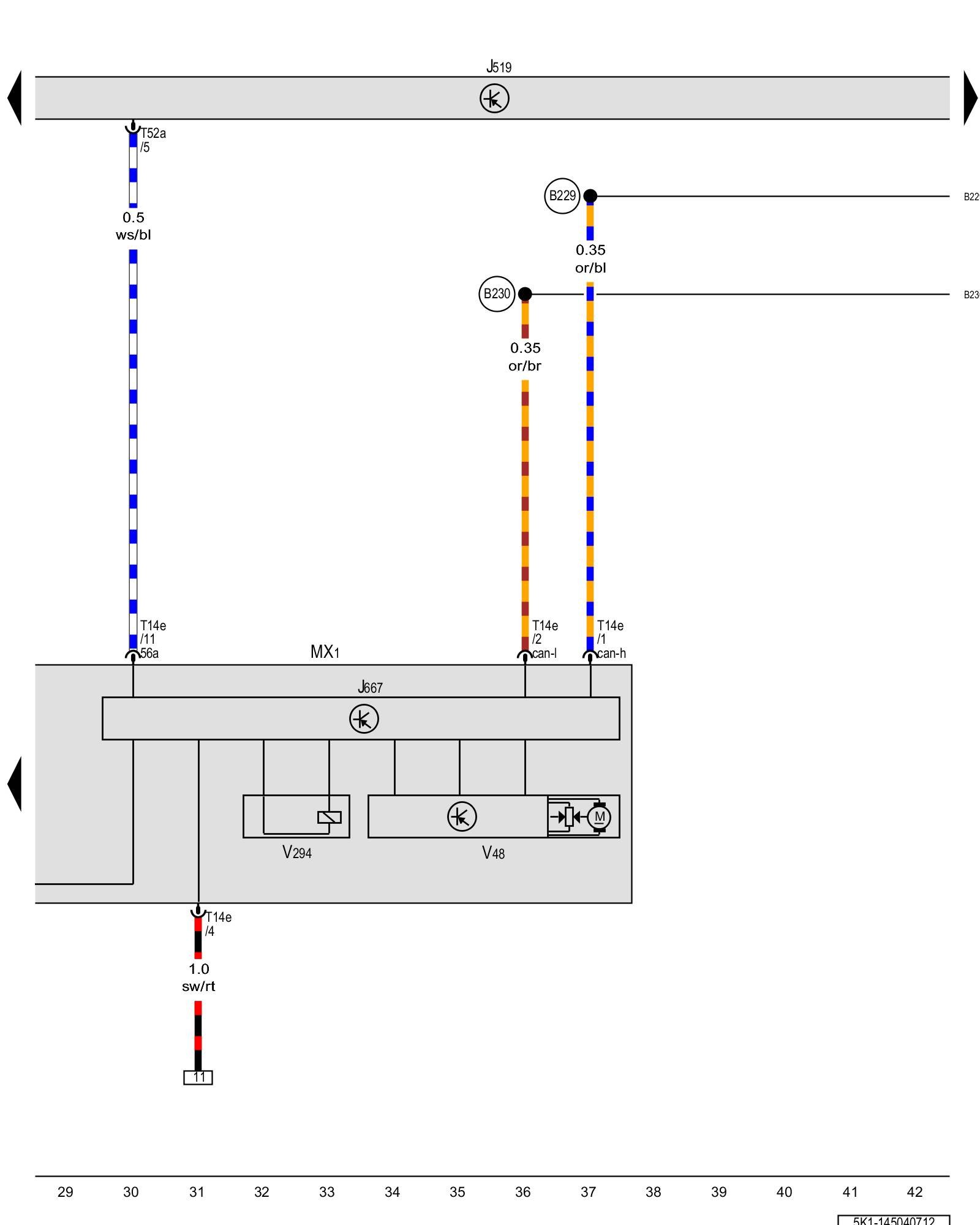

Vehicle electrical system control module, Left headlamp power output stage, Left headlamp beam adjustment motor, Left low beam headlamp reflector motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J667 - Left headlamp power output stage, on the left headlamp

MX1 - Left front headlamp

T14e - 14-pin connector

T52a - 52-pin connector

V48 - Left headlamp beam adjustment motor

V294 - Left low beam headlamp reflector motor

(B229) - High bus connection (in interior wiring harness)

(B230) - Low bus connection (in interior wiring harness)
