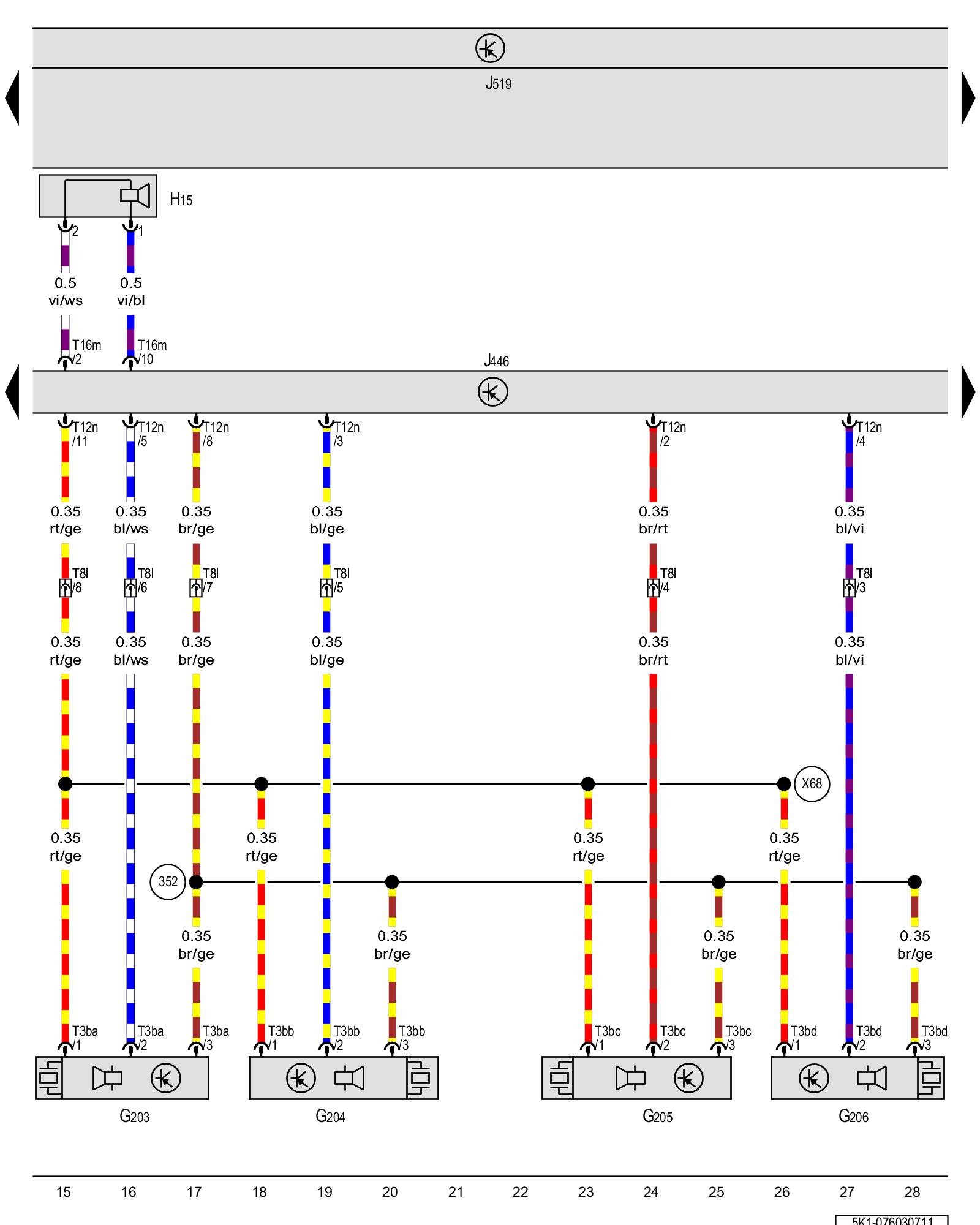

Diagram 76/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left rear parking aid sensor, Left rear center parking aid sensor, Right rear center parking aid sensor, Right rear parking aid sensor, Rear parking aid warning buzzer, Parking aid control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G203 - Left rear parking aid sensor Parking Aid System Parking Sensors : Rear (G203, G204, G205, G206)

G204 - Left rear center parking aid sensor Parking Aid System Parking Sensors : Rear (G203, G204, G205, G206)

G205 - Right rear center parking aid sensor Parking Aid System Parking Sensors : Rear (G203, G204, G205, G206)

G206 - Right rear parking aid sensor Parking Aid System Parking Sensors : Rear (G203, G204, G205, G206)

H15 - Rear parking aid warning buzzer Parking Aid System Rear Parking Aid Warning Buzzer -H15-

J446 - Parking aid control module, behind the instrument panel, left Control modules in front part of vehicle - Overview of Control Modules Parking Aid Control Module -J446-

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

T3ba - 3-pin connector

T3bb - 3-pin connector

T3bc - 3-pin connector

T3bd - 3-pin connector

T8l - 8-pin connector, behind the right rear bumper Overview of connector stations and connectors

T12n - 12-pin connector

T16m - 16-pin connector

(352) - Parking aid ground connection (in rear bumper wiring harness)

(X68) - Parking aid connection (in rear bumper wiring harness)

Previous Diagram 76/2 (Tracks 1-14)

Next Diagram 76/4 (Tracks 29-42)
