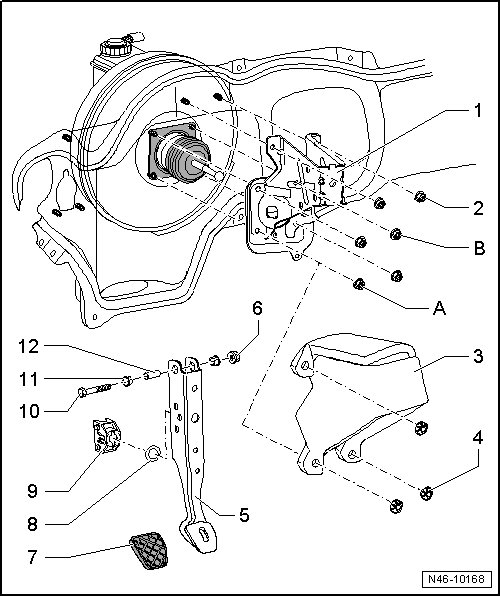

Brake Pedal Overview

Brake Pedal Overview


The path of the brake pedal must not be shortened via extra floor mats.

Lubricate all bearing areas with poly lubricant (G 052 142 A2) before installing.






1 Mounting Bracket

• Removing and installing, refer to => [ Brake Pedal Mounting Bracket ] Brake Pedal Mounting Bracket.

2 Nut

• 25 Nm

• Always replace if removed.

• First, tighten the nuts - A and B -.

3 Sound Absorber, on the Brake Pedal

• Allocation, refer to the Parts Catalog.

4 Retainer

5 Brake Pedal

• Removing and installing, refer to => [ Brake Pedal ] Brake Pedal.

6 Nut

• 25 Nm

• Always replace if removed.

7 Cap

8 Bearing Shell

9 Mounting

• For the ball head on the brake booster push rod.

10 Bolt

11 Bushing

12 Pin
