Rear Inner Door Seal

Inner Door Seal

Inner door seals are equipped at the factory with sealant, applied to door flange and then rolled on.

• The sealing compound will be distributed on the inside of the seal and the flanks will be slightly bent when the seal is removed. When the seal is installed again, it may not fit securely and it make leak.

• For this reason, every completely removed seal must be replaced with a so-called "hammer-stroke seal".

• With partially removed seals, press the edges of the seal together before installing.

• The following describes removing and installing the right inner door seal only. Removing and installing the left inner door seal is identical.

Removing






- Remove the pillar trim in order to remove the inner door seal..

- Remove sill panel strip.

- Remove the inner door seal - 1 - from the body flange - 2 -.

Installation

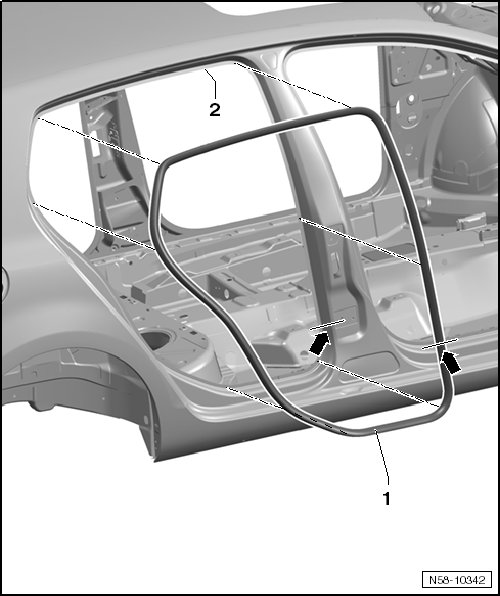

- Align the inner door seal - 1 - with the vulcanized point - arrow - at the height of the lower hinge - arrow -.

- Start installation of inner door seal in upper radius of door cutout.
